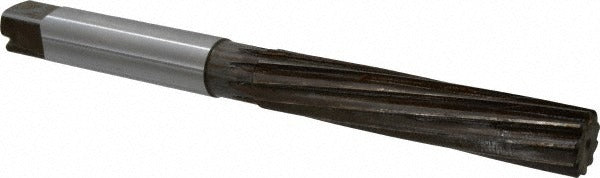

Value Collection SM2000104 Hand Reamer 1.0625 in Hss

Product Description

The VALUE COLLECTION SM2000104 is a hand reamer designed to finish and size drilled or bored holes to precise tolerances. Built from high speed steel with a bright uncoated finish, this tool delivers consistent cutting performance in metalworking and machining applications. It features a spiral flute geometry with a left-hand spiral direction and right-hand cutting direction, which helps pull chips away from the cutting edge during use. At 1.0625 inches in diameter with an 11.25-inch overall length, this reamer is suited for finishing larger-bore holes where accuracy is critical.

This hand reamer is used in maintenance, repair, and fabrication shops wherever hand-fed reaming is required to bring a hole to final size. The straight shank allows it to be driven with a standard tap wrench or adjustable handle. It is appropriate for use in ferrous and non-ferrous metals in both light production and toolroom environments. The 5.625-inch flute length provides adequate contact for through-holes and deep blind passages in common workpiece thicknesses.

Key Features

• High speed steel construction for durability in ferrous and non-ferrous materials
• Left-hand spiral flute geometry promotes chip evacuation during right-hand cutting
• Bright uncoated finish suitable for general-purpose reaming without added surface treatment
• Straight shank compatible with standard tap wrenches and reamer handles
• 1.0625-inch diameter for finishing larger bores to close tolerances
• 11.25-inch overall length provides reach for a range of workpiece configurations

Compatibility

Designed as a general-purpose hand reamer for use with standard tap wrenches and adjustable reamer handles in metalworking, maintenance, and fabrication applications requiring a 1.0625-inch finished bore diameter.

Installation Notes

Hand reamers are installed and operated by machinists and maintenance technicians using a tap wrench or adjustable handle — power driving is not recommended for hand reamers, as it can cause chatter or oversize the bore. Before reaming, ensure the workpiece is securely fixtured and the pilot hole is drilled to the correct undersize. Apply cutting fluid appropriate for the workpiece material to extend tool life and improve surface finish. Inspect the reamer flutes for wear or damage before each use.
