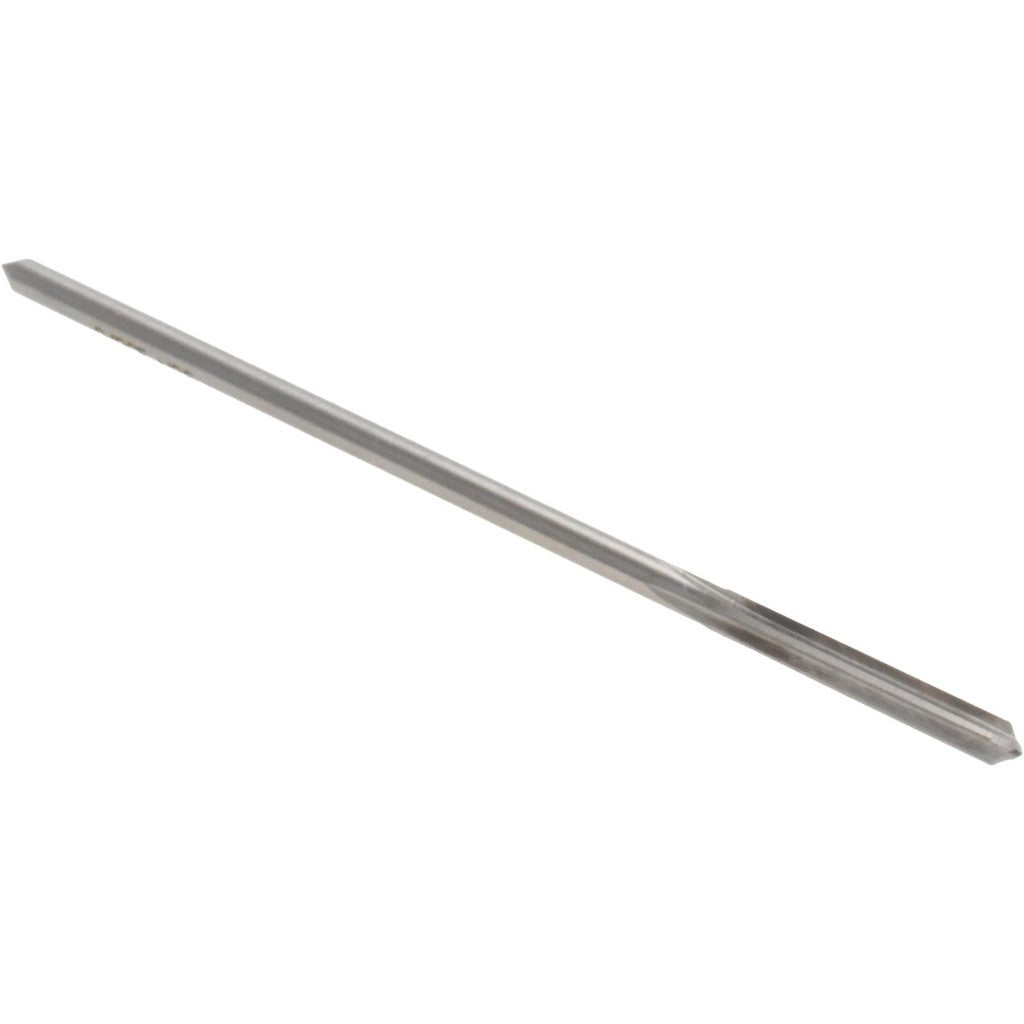

Value Collection SM0401205 Chucking Reamer 0.1205 in Hss

Product Description

The VALUE COLLECTION SM0401205 is a chucking reamer designed to finish-ream drilled or bored holes to a precise 0.1205-inch diameter. Built from high-speed steel (HSS), it delivers the hardness and wear resistance needed for consistent sizing in metal and similar materials. The straight flute geometry suits most general-purpose reaming applications. Four flutes provide adequate chip clearance and surface finish quality in production and maintenance environments. Right-hand cutting direction is standard for conventional drill press and lathe chucking setups. Machinists, tool and die workers, and maintenance technicians are the primary installers of this tool.

This reamer is suited for light production, toolroom, and maintenance repair operations where holes require close-tolerance finishing. The straight-cylindrical shank allows direct chucking in drill presses, lathes, or mill chucks without additional adapters. The 0.1205-inch diameter falls within the 0.1000 to 0.1499 inch reamer diameter range, making it appropriate for small-diameter precision hole work in ferrous and non-ferrous metals.

Key Features

• 0.1205-inch reamer diameter for precise small-hole finishing
• High-speed steel (HSS) construction for hardness and wear resistance
• 4 straight flutes for consistent chip evacuation and hole finish
• Right-hand cutting direction compatible with standard machine spindles
• Straight-cylindrical shank for direct chucking without adapters
• Bright/uncoated finish — no coating buildup to affect dimensional tolerance

Compatibility

Designed as a general-purpose chucking reamer for use in drill presses, engine lathes, and milling machines equipped with a compatible chuck or collet accepting a straight-cylindrical shank at this diameter range.

Installation Notes

Installation and use of this tool should be performed by qualified machinists or trained technicians. Always secure the workpiece and ensure the machine spindle is fully stopped before mounting or removing the reamer. Use appropriate cutting fluid for the material being reamed to extend tool life and improve hole finish. Inspect the shank and cutting edges for damage before each use.
