Value Collection SM01N0033 Chucking Reamer Wire 33 Hss

Product Description

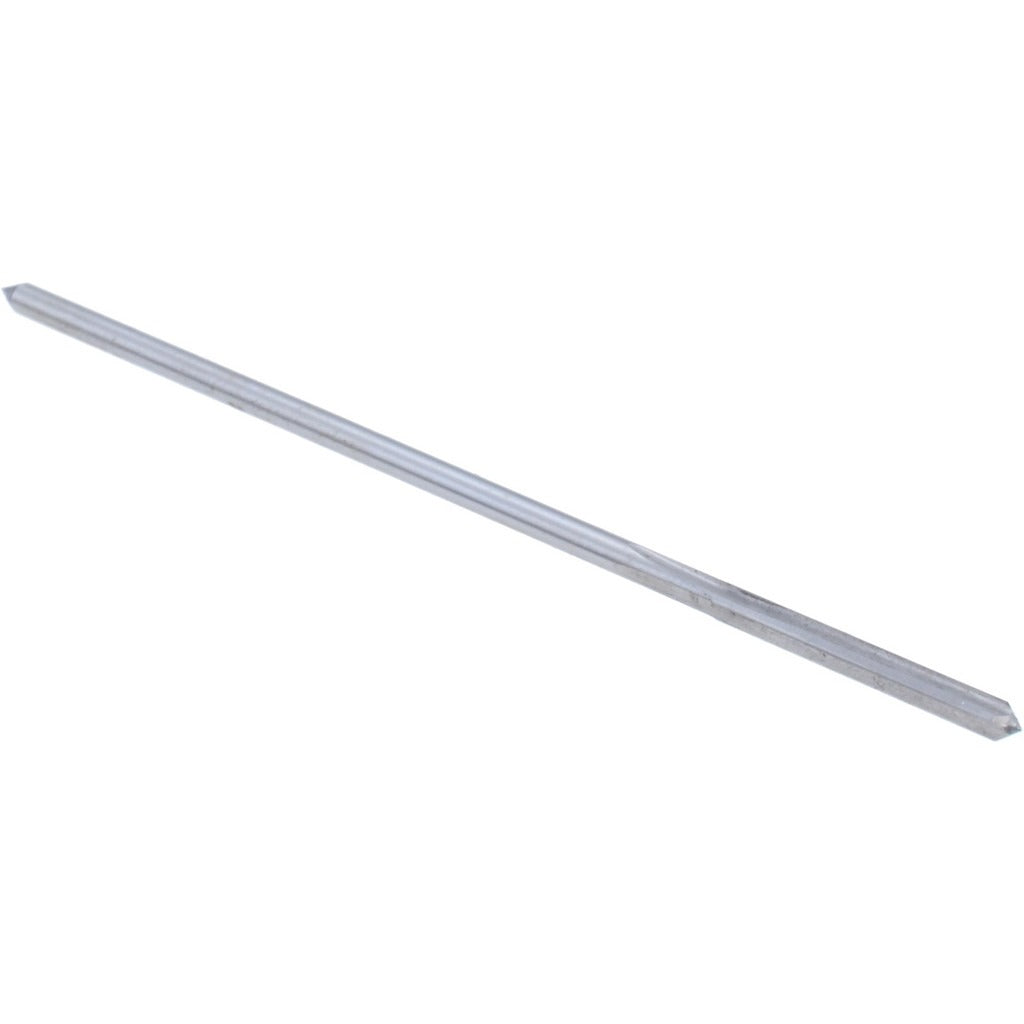

The VALUE COLLECTION SM01N0033 is a wire-gauge chucking reamer in size 33 (0.1130 inch diameter), designed to finish-ream precision holes to tight tolerances in metal workpieces. Manufactured from high-speed steel (HSS) with a bright, uncoated finish, this 4-flute straight-flute reamer delivers clean, accurate bore sizing in production and job-shop environments. The straight-cylindrical shank is compatible with standard drill chucks and collet holders. Overall length is 3.5 inches with a flute length of 0.875 inches. Right-hand cutting direction suits conventional machine spindle rotation. Machinists, tool-and-die makers, and general metalworking shops are the primary users.

This reamer is suited for finishing drilled or bored holes in ferrous and non-ferrous metals where close dimensional accuracy is required. Typical applications include through-holes and blind holes in fixtures, brackets, and machine components. The 0.1130 inch cutting diameter corresponds to wire gauge size 33, making it useful in applications where standard fractional or letter-size reamers do not match the required hole specification. The 4-flute straight configuration is well matched to through-hole reaming on CNC machining centers, drill presses, and manual mills.

Key Features

• Wire gauge size 33 cutting diameter: 0.1130 inch (decimal range 0.1000 to 0.1499 inch class)
• High-speed steel (HSS) construction for durability across a range of metalworking materials
• Bright, uncoated finish suitable for use with cutting fluids in standard reaming operations
• 4-flute straight-flute geometry for consistent chip evacuation in through-hole applications
• Right-hand cutting direction compatible with standard machine spindle rotation
• Straight-cylindrical shank fits standard drill chucks and ER-style collet systems

Compatibility

Designed as an OEM-style replacement or direct-use chucking reamer for machine spindles accepting a straight-cylindrical shank in the appropriate diameter range.

Installation Notes

Chucking reamers are installed by machinists and tool-and-die professionals using a drill chuck or collet holder rated for the shank diameter. Always secure the shank fully in the chuck or collet before operation and confirm runout is within acceptable limits for the tolerance required. Use an appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish. Ensure the workpiece is rigidly clamped before reaming to prevent tool deflection or chatter.
