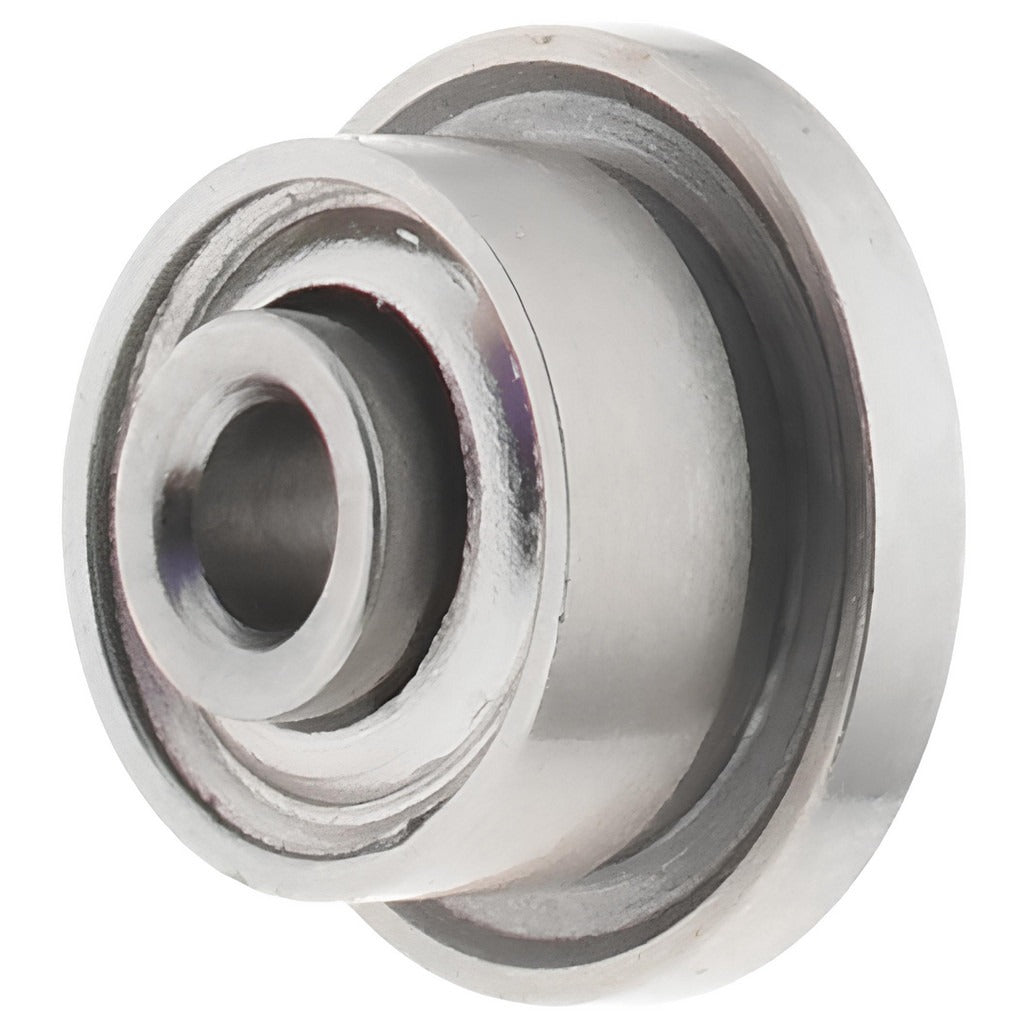

Value Collection SFRW0-ZZ Miniature Ball Bearing Flanged

Product Description

The VALUE COLLECTION SFRW0-ZZ is a miniature flanged ball bearing designed for precision applications requiring compact radial support in tight spaces. Manufactured with a stainless steel housing, this single-row bearing features a double-shield design to keep contaminants out and retain lubrication. It carries an ABEC-5 rating, indicating close dimensional tolerances suited to higher-speed or precision-critical assemblies. With a 0.0469-inch bore, 0.1562-inch outside diameter, and an overall width of 0.0937 inches, the SFRW0-ZZ fits into miniature instrument, medical, or small-equipment applications where standard bearings are too large. Licensed mechanics, maintenance technicians, and precision equipment assemblers typically specify this part.

This bearing is used in small rotating assemblies where a flanged mount is needed to positively locate the bearing in a housing bore without a separate retaining ring. The flange outside diameter measures 0.2030 inches, providing a positive shoulder against the housing face. The double-shield construction suits environments where light contamination or lubricant retention is a concern. Typical applications include miniature motors, instrumentation, robotics, and small appliance assemblies. With a static load capacity of 9 pounds and a dynamic load capacity of 31 pounds, it is sized for light-duty radial loads common in these settings.

Key Features

• ABEC-5 tolerance class for dimensional precision and reduced runout
• Double-shield design retains lubrication and excludes contaminants
• Flanged style with 0.2030-inch flange OD for positive axial location in housing
• Stainless steel housing material for corrosion resistance
• Single-row, round bore construction for straightforward radial load applications
• No snap ring required — flange provides integral retention

Compatibility

Designed as an OEM-style replacement miniature flanged ball bearing for compact rotating assemblies requiring a 0.0469-inch bore and 0.1562-inch outside diameter with a double-shield flanged configuration.

Installation Notes

Installation should be performed by a qualified mechanic or precision equipment technician familiar with miniature bearing fits. Press or seat the bearing by applying force to the ring being press-fitted — never drive load through the rolling elements. Ensure the housing bore and shaft are clean and within specified tolerance before installation. Do not use impact tools on miniature bearings of this size class.
