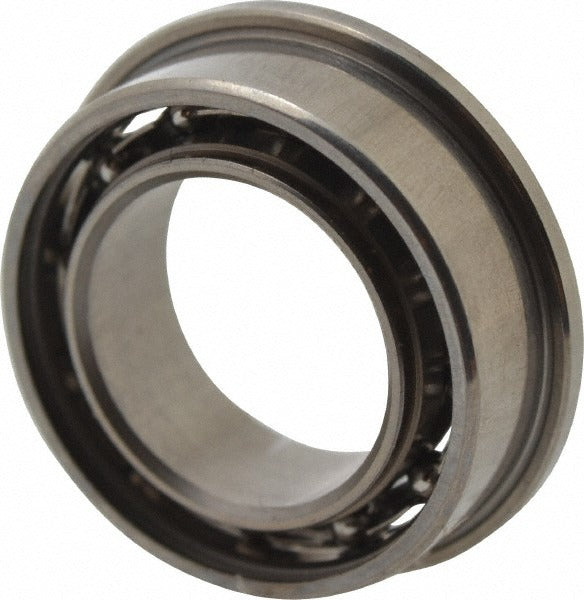

Value Collection SFR1810 Miniature Flanged Ball Bearing

Product Description

The Value Collection SFR1810 is a miniature flanged ball bearing designed for light-load, precision applications where compact size and accurate positioning are critical. Built with a stainless steel housing, this single-row open bearing carries a static load capacity of 52 pounds and a dynamic load capacity of 122 pounds. It is rated ABEC-5, meaning tighter tolerances than standard bearings, which suits applications requiring low vibration and consistent rotational accuracy. The flanged design simplifies axial location and retention in bored housings without additional hardware. Technicians working on small motors, pumps, instrumentation, or light mechanical assemblies will find this bearing a direct drop-in for SFR1810-specification fits.

This bearing is suited for use in small electric motors, fractional-horsepower drives, medical equipment, precision instruments, and light-duty mechanical assemblies. The open style allows for external lubrication access, making it appropriate for applications where periodic relubrication is part of the service routine. Its flanged outer ring seats against a housing shoulder, providing a positive stop for axial positioning during installation. Both residential and commercial light mechanical applications are within scope for this bearing specification.

Key Features

• ABEC-5 rated for tighter dimensional tolerances and reduced runout compared to ABEC-1 or ABEC-3 bearings
• Flanged outer ring with a 0.547 inch flange outside diameter for positive axial location in bored housings
• Stainless steel housing construction for corrosion resistance in damp or mildly corrosive environments
• Open bearing style allows external lubrication access for maintenance-accessible installations
• Single-row design in a compact envelope: 0.3125 inch bore, 0.5 inch OD, 0.1562 inch width
• 122 pound dynamic load capacity and 52 pound static load capacity suitable for light-duty precision applications

Compatibility

Designed as a direct replacement for SFR1810-specification miniature flanged ball bearings in light-duty mechanical assemblies requiring a 0.3125 inch bore, 0.5 inch OD, and 0.1562 inch width with ABEC-5 tolerances.

Installation Notes

Installation should be performed by a qualified mechanic or technician familiar with precision bearing fits. Power down and de-energize any equipment fully before replacing bearings. Press or seat the bearing using a bearing press or properly sized driver that applies force to the ring being fitted — never drive load through the rolling elements. Ensure the housing bore and shaft are clean and within tolerance before installation to avoid compromising the ABEC-5 rating.
