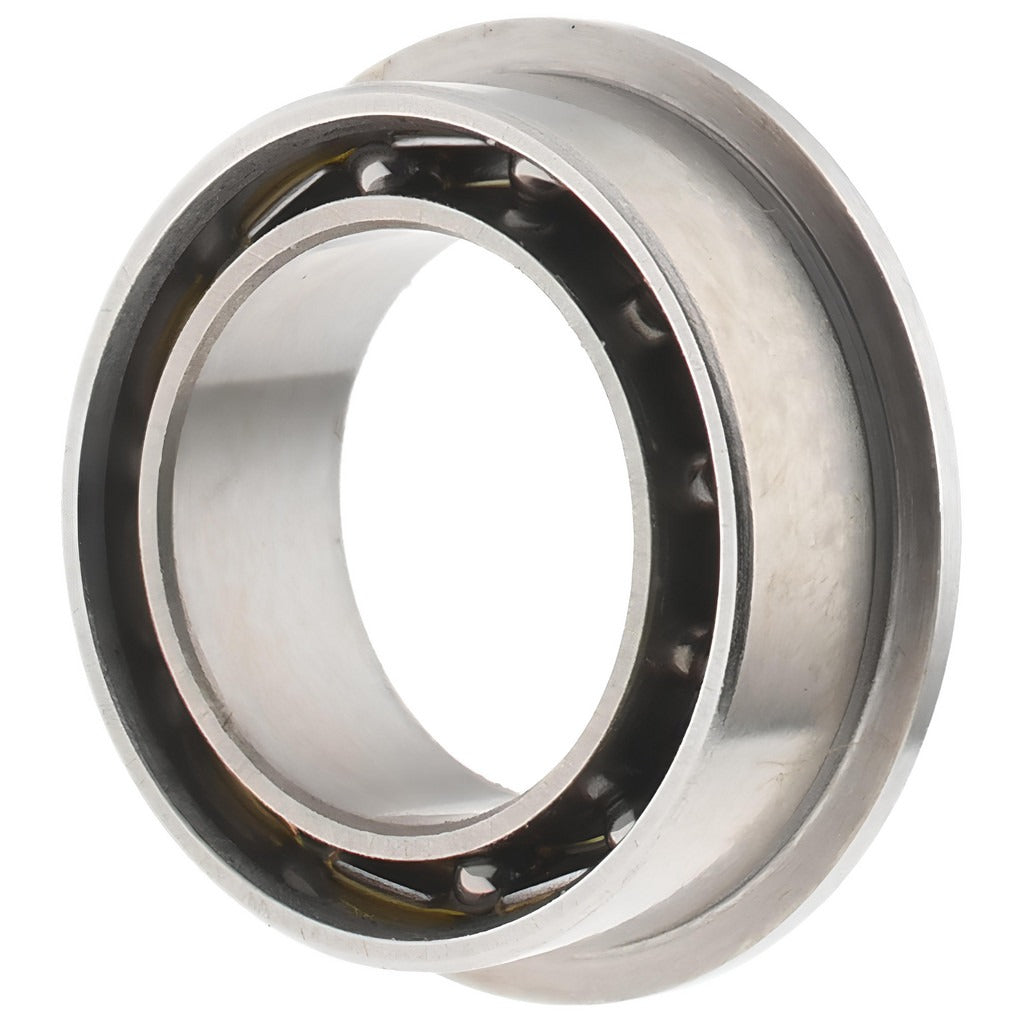

Value Collection SFR168 Miniature Flanged Ball Bearing

Product Description

The VALUE COLLECTION SFR168 is an open-style miniature flanged ball bearing designed for compact rotating assemblies that require precise, low-friction support in tight spaces. With a 0.25-inch bore diameter, 0.375-inch outside diameter, and 0.125-inch overall width, this single-row bearing fits applications where standard-size bearings cannot. The stainless steel housing resists corrosion in wet or chemically exposed environments. It carries a static load capacity of 33 pounds and a dynamic load capacity of 84 pounds, making it suitable for light-duty precision equipment. The ABEC-5 tolerance rating ensures dimensional accuracy for applications that demand consistent, repeatable performance. Licensed tradespeople and maintenance technicians typically source this bearing for small motor shafts, pumps, and instrumentation.

The SFR168 is used in residential and light commercial equipment where miniature bearings are specified, including small fractional-horsepower motors, blower assemblies, metering pumps, and precision instruments. The flanged design locates the bearing axially in a housing bore without a separate retaining feature, simplifying installation in thin panel or bracket applications. The open configuration allows direct lubrication access during service. This bearing is a common replacement component for HVAC blower motors, pool equipment pumps, and similar trade-service machinery that uses sub-half-inch bore bearings.

Key Features

• Flanged outer ring with 0.422-inch flange outside diameter for positive axial location in housing
• ABEC-5 precision tolerance rating for consistent dimensional control in close-tolerance assemblies
• Stainless steel housing material for corrosion resistance in wet or chemically exposed environments
• Open style allows direct lubrication access and suits dry or pre-lubricated applications
• Single-row design with round bore accommodates radial and light axial loads
• Compact envelope: 0.25-inch bore, 0.375-inch OD, 0.125-inch width

Compatibility

Designed as a direct-fit replacement for miniature flanged ball bearings using the SFR168 bearing number designation in light-duty rotating equipment with a 0.25-inch shaft diameter.

Installation Notes

Bearing installation should be performed by a qualified mechanic or maintenance technician familiar with precision bearing practices. Always de-energize and lock out the equipment before removing the existing bearing. Press or seat the bearing by applying force to the ring being fitted to the interference surface — never drive force through the rolling elements. For open bearings, apply the appropriate lubricant for the operating environment before or immediately after installation per the equipment manufacturer's service manual.
