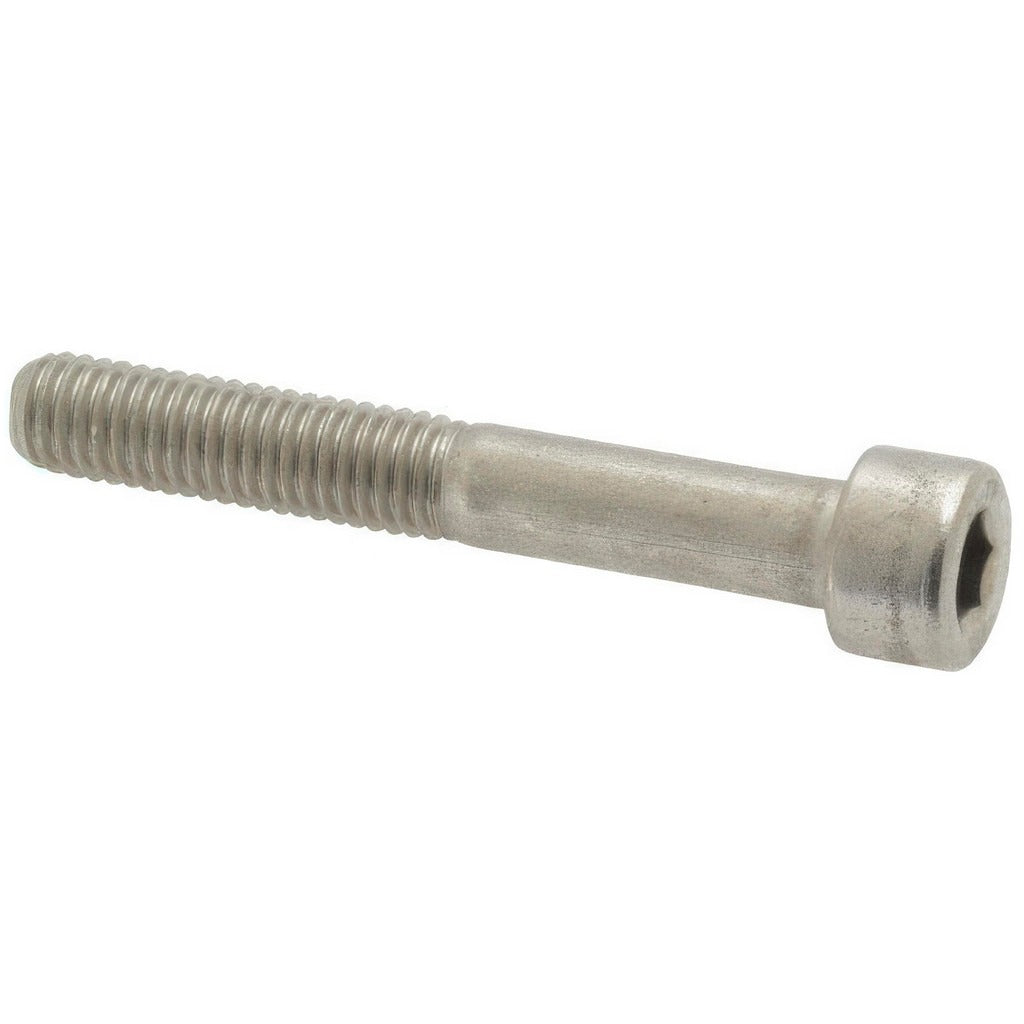

Value Collection SCX216150-005BX M16 Hex Socket Cap Screw

Product Description

The VALUE COLLECTION SCX216150-005BX is a metric hex socket cap screw designed for applications requiring a strong, corrosion-resistant fastener with a low-profile head. Manufactured to DIN 912 standards, this screw features an M16 x 2.00 thread and a 150 mm length under head. The drive type is internal hex (Allen), allowing high torque application with a standard hex key or socket driver. The body is 18-8 austenitic stainless steel, Grade A2, left in a bright, uncoated finish. This fastener is specified in mechanical assemblies, structural connections, and equipment fabrication where metric precision and corrosion resistance are required.

This screw is suited for use in industrial machinery, commercial equipment mounting, and fabrication work where metric fasteners are specified. The partial threading along the shank provides a clamping zone and is typical for heavy-duty bolted joints. Machinists, millwrights, maintenance mechanics, and general contractors working to metric specifications will find this fastener appropriate for both static and dynamic load applications across a range of industries.

Key Features

• DIN 912 standard hex socket cap screw for precise metric fitment
• M16 x 2.00 thread size with 150 mm length under head
• Partially threaded shank for controlled clamping in bolted joints
• 18-8 austenitic stainless steel, Material Grade A2 for corrosion resistance
• Bright, uncoated finish — no added coating that could affect dimensional tolerances
• Internal hex drive accepts standard hex keys and socket drivers

Compatibility

Designed as a DIN 912-compliant metric hex socket cap screw suitable for M16 x 2.00 threaded applications in industrial, commercial, and mechanical assembly contexts.

Installation Notes

Install using a properly sized hex key or hex socket driver rated for the torque requirements of the joint. Ensure mating threads are clean and free of debris before installation. Stainless steel fasteners are susceptible to galling — apply an appropriate anti-seize compound to the threads when torquing to prevent thread damage. Follow the applicable mechanical or structural specification for required torque values, as these are not defined by the fastener itself.
