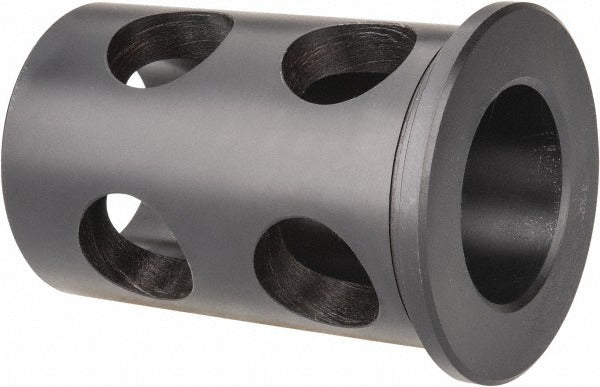

Value Collection SC84949569 Type J Tool Holder Bushing

Product Description

The VALUE COLLECTION SC84949569 is a Type J rotary tool holder bushing designed for use in machine tool setups where precise bore alignment and secure tool positioning are required. It features a 2-inch inside diameter and a 3-inch outside diameter, with a length under the head of 4.5 inches and a head thickness of 0.365 inches. This bushing is installed by machinists and tooling technicians in milling, drilling, and boring operations to guide and support rotating tooling. The flanged head design of Type J bushings provides a positive stop against the tooling plate, ensuring repeatable seating depth during production runs.

This bushing is suited for industrial machining environments where a press-fit or slip-fit guide bushing is needed to locate drill bits, reamers, or boring bars. The 2-inch bore accommodates standard tooling shanks of that diameter. With a 4.5-inch length under the head, it provides adequate support depth for applications requiring extended tool guidance through thick fixtures or tooling plates. The part is appropriate for job shop, production machining, and toolroom applications.

Key Features

• Type J flanged bushing design provides a positive stop for consistent seating depth
• 2-inch inside diameter accommodates standard tooling shanks
• 3-inch outside diameter suits correspondingly sized tooling plate bores
• 4.5-inch length under head delivers extended tool guidance for thick fixtures
• 0.365-inch head thickness provides a stable flange bearing surface
• Weighs 2.464 pounds for a robust, solid construction

Compatibility

Designed as a standard Type J rotary tool holder bushing for use in drill jigs, fixture plates, and machine tool setups requiring a 2-inch ID, 3-inch OD flanged guide bushing.

Installation Notes

Installation is typically performed by a machinist or tooling technician. Ensure the receiving bore in the fixture plate is clean and dimensionally correct before pressing or fitting the bushing. Power down and lock out the machine before installing or removing any tooling bushings. Do not exceed the design load of the fixture plate or use impact tools that could damage the bushing bore or seating surface.
