Value Collection SC84948975 Rotary Tool Holder Bushing Type C

Product Description

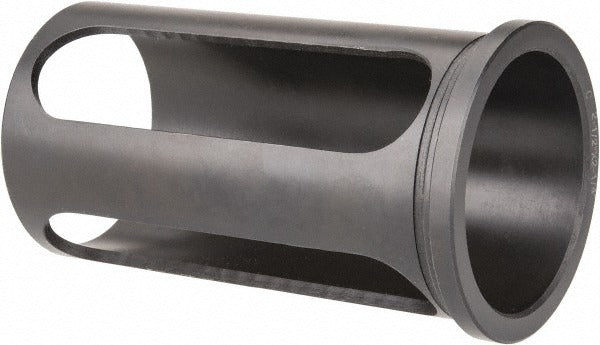

The VALUE COLLECTION SC84948975 is a Type C rotary tool holder bushing used in machine tool setups to locate and support cutting tools within a drill jig or tooling fixture. With a 2.25-inch inside diameter and a 2.5-inch outside diameter, this bushing provides a precise bore for tool guidance. The 4.5-inch length under the head gives extended support for deep-hole drilling or boring operations. The 0.333-inch head thickness provides a stable seating surface against the jig plate. Weighing 2.376 pounds, this bushing is suited for heavy-duty industrial tooling applications. Licensed machinists and tooling engineers typically specify and install this component.

This Type C rotary tool holder bushing is designed for use in drill jig fixtures and production machining environments where accurate tool location is critical. It is commonly installed in machine shops, manufacturing lines, and fabrication facilities handling medium-to-large diameter tooling. The extended slot length of 4.125 inches accommodates locking mechanisms used with rotating or slip-renewable bushing setups. This bushing is sold individually as a single unit.

Key Features

• Type C bushing configuration for use with rotating or renewable bushing systems
• 2.25-inch inside diameter for tool bore guidance
• 2.5-inch outside diameter for press or slip fit into jig liner
• 4.5-inch length under head provides extended tool support depth
• 4.125-inch slot length compatible with standard locking hardware
• 0.333-inch head thickness for stable flange seating

Compatibility

Designed as an OEM-style replacement or direct-fit component for standard Type C rotary tool holder bushing applications in drill jig and fixture tooling systems.

Installation Notes

Installation is typically performed by a machinist or tooling engineer during fixture assembly or maintenance. Ensure the jig plate bore is clean and within tolerance before seating the bushing. Power down all associated machinery before removing or installing bushings. Follow applicable ASME tooling and fixturing standards for press-fit or slip-fit bushing installation procedures.
