Value Collection SC84948942 Type C Rotary Tool Holder Bushing

Product Description

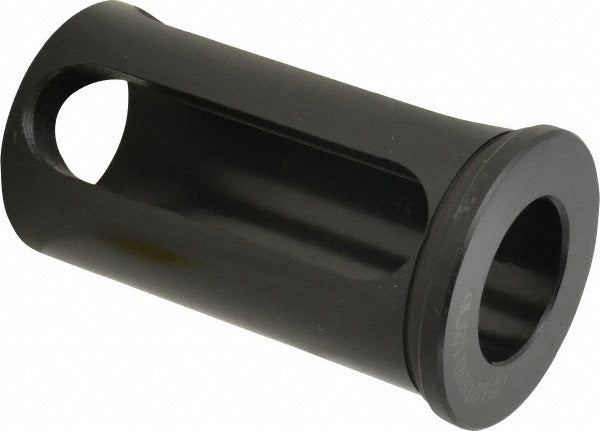

The VALUE COLLECTION SC84948942 is a Type C rotary tool holder bushing designed to locate and support cutting tools within rotary tool holders and machining fixtures. With a 1.5-inch inside diameter and a 2.5-inch outside diameter, this bushing provides precise tool guidance during drilling, reaming, and boring operations. The 4.5-inch length under head accommodates deeper workpiece setups, while the 0.333-inch head thickness seats the bushing securely against the fixture plate. Weighing 2.376 pounds, this is a solid, production-grade component suited for machine shop and industrial fabrication environments. Installation is typically performed by toolmakers and machining setup technicians.

This Type C bushing is used in jig and fixture setups across production machining environments, including CNC drilling stations, manual drill presses, and multi-spindle operations. The 4.125-inch slot length allows clearance for set screws or locking mechanisms that secure the bushing in a renewable bushing liner. It is appropriate for both light-duty and production drilling applications where repeatable tool positioning is required. No specific compatible machine models are listed in the available product data.

Key Features

• Type C bushing geometry with a defined head for positive seating in fixture plates
• 1.5-inch inside diameter for consistent tool or liner guidance
• 2.5-inch outside diameter for press or slip fit into standard bushing liners
• 4.5-inch length under head supports deep-reach drilling and reaming setups
• 4.125-inch slot length accommodates locking hardware in renewable liner applications
• 0.333-inch head thickness provides a stable flange surface against the fixture body

Compatibility

Designed as an OEM-style replacement or direct-fit component for standard Type C rotary tool holder bushing applications in jig and fixture assemblies requiring a 1.5-inch ID and 2.5-inch OD bushing.

Installation Notes

Installation is performed by qualified toolmakers or machining setup personnel. Ensure the fixture plate bore and mating liner are clean and within tolerance before pressing or fitting the bushing. De-energize and lock out all machine power before performing any fixture service or bushing replacement. Verify slot alignment with locking hardware before returning the fixture to service.
