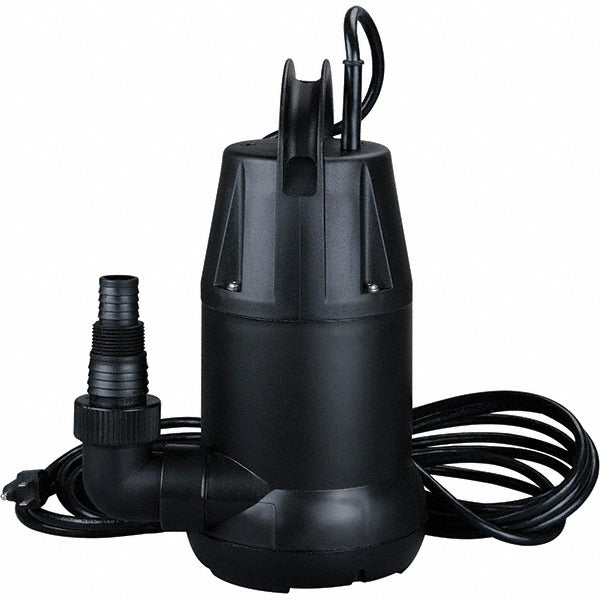

Value Collection SC62436951 Submersible Pump 1/4 Hp 120V

Product Description

The VALUE COLLECTION SC62436951 is a hand-operated submersible pump designed for fluid transfer applications in residential and light commercial settings. Running on 120 volts at 60 Hz, it draws 1.5 amps and delivers 1/4 horsepower output. The housing is constructed from polypropylene, offering resistance to corrosion and chemical exposure in wet environments. The 1-1/2 inch FPT outlet uses NPT thread, making it straightforward to connect to standard pipe fittings. Thermal overload protection is built in, which shuts the motor down automatically if operating temperatures exceed safe limits. Licensed plumbers and pump service technicians are the typical installers for this type of unit.

This submersible pump is suited for sump, dewatering, and general-purpose fluid transfer tasks. The hand-operated design gives the installer direct control over pump activation, making it practical for intermittent-duty or on-demand pumping scenarios. It fits into tight sump pits or collection basins where automated float-switch systems are not required. The polypropylene housing handles a range of common fluids without degrading, and the compact footprint at roughly 12.99 inches tall and 8.66 inches in length allows installation in confined spaces.

Key Features

• Hand-operated control for on-demand, intermittent-duty pumping
• 1/4 HP motor rated at 120 volts, 1.5 amps, 60 Hz
• Polypropylene housing resists corrosion and chemical degradation
• 1-1/2 inch FPT outlet with NPT thread for standard pipe connection
• Built-in thermal overload protection guards against motor burnout

Compatibility

Designed as an OEM-style replacement or direct-install submersible pump for residential and light commercial sump or dewatering applications requiring a 120-volt, 1-1/2 inch NPT outlet connection.

Installation Notes

Installation should be performed by a licensed plumber or qualified pump technician. Disconnect power at the circuit breaker before handling electrical connections, and verify the outlet circuit is rated for the pump draw before energizing. Ensure the discharge pipe is properly supported and that all NPT threaded connections are sealed with an appropriate thread sealant. Follow local plumbing codes and the National Electrical Code (NEC) for wiring and bonding requirements in wet locations.
