Value Collection SC05879929 Type Z Tool Holder Bushing

Product Description

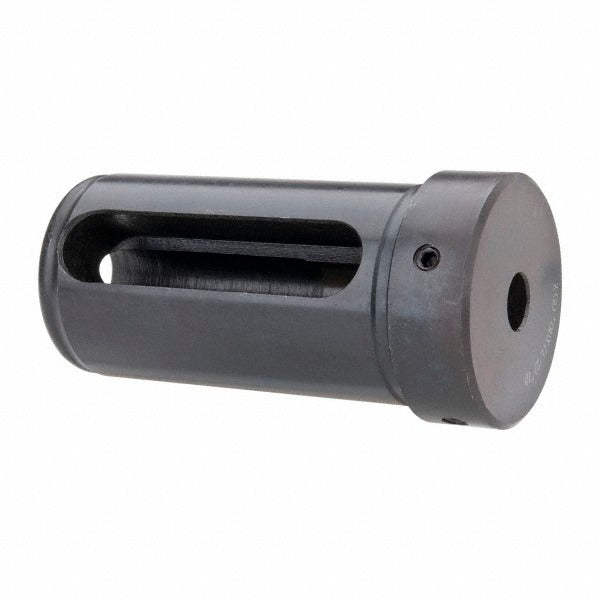

The VALUE COLLECTION SC05879929 is a Type Z rotary tool holder bushing designed for use in machine tool setups where precise drill or tool alignment is required. With a 0.5000 inch inside diameter and a 2.0000 inch outside diameter, this bushing guides rotating cutting tools with consistent accuracy. The head thickness measures 0.7500 inches and the length under the head is 3.7500 inches, making it suitable for applications requiring extended reach. A 3.125 inch slot length accommodates locking or keying arrangements common in industrial tooling fixtures. This part is typically installed by machinists and tool and die professionals working with drill jigs, boring fixtures, or other precision workholding equipment.

This Type Z bushing fits standard rotary tool holder applications in manufacturing and machine shop environments. It is suited for use in drill jig assemblies where a headed, slotted style bushing is specified. The extended length under the head and the defined slot length make it appropriate for setups requiring a fixed or renewable bushing configuration in production or maintenance tooling scenarios.

Key Features

• Type Z bushing configuration with head and slot for positive retention in jig plates
• 0.5000 inch inside diameter for precise tool or drill guidance
• 2.0000 inch outside diameter for firm seating in standard bushing liners
• 0.7500 inch head thickness provides a stable shoulder against the jig plate face
• 3.7500 inch length under head accommodates deep jig plate or fixture applications
• 3.125 inch slot length supports keying or locking pin engagement

Compatibility

Designed as a standard Type Z rotary tool holder bushing for use in drill jig plates and precision tooling fixtures that accept this head and slot style configuration.

Installation Notes

Installation is typically performed by a machinist or tooling technician. Ensure the receiving jig plate bore is clean and within tolerance before pressing or seating the bushing. Power down and lock out any associated machine before servicing tooling fixtures. Do not force the bushing into an undersized bore, as this may damage the bushing or the fixture.
