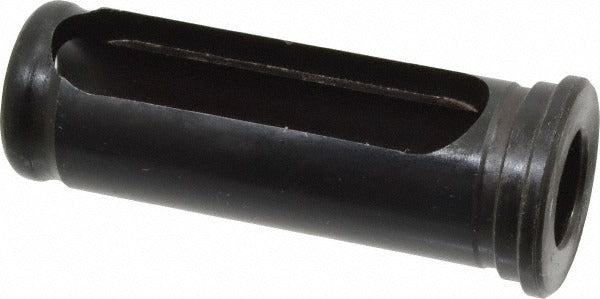

Value Collection SC05879374 Type C Tool Holder Bushing

Product Description

The VALUE COLLECTION SC05879374 is a Type C rotary tool holder bushing designed for use in machining and toolholding applications. With an inside diameter of 0.625 inches, an outside diameter of 1.0000 inches, and a length under head of 2.75 inches, this bushing provides precise tool guidance and positioning in drill press, mill, or lathe setups. The head thickness measures 0.265 inches (approximately 3/16 inches) and the slot length is 2.375 inches. Weighing 1.342 pounds, it is a solid, durable component suited for installation by machinists and toolroom technicians working in production or maintenance environments.

This Type C tool holder bushing is used in rotary toolholding systems where accurate bore alignment and tool retention are required. It is appropriate for both production machine shops and maintenance toolrooms. Typical applications include press-fit or slip-fit installations in tool holders, jig plates, and fixture setups where a flanged head and slotted body are required for correct seating and locking. The 2.375-inch slot length accommodates standard locking mechanisms associated with the Type C bushing configuration.

Key Features

• Type C bushing configuration with flanged head and slotted body for positive retention
• Inside diameter of 0.6250 inches for precise tool or drill guidance
• Outside diameter of 1.0000 inches for standard toolholder bore fitment
• Head thickness of 0.265 inches (3/16 inches) for positive seating against fixture surfaces
• Slot length of 2.375 inches compatible with standard Type C locking mechanisms
• Length under head of 2.75 inches for adequate tool support depth

Compatibility

Designed as a standard Type C rotary tool holder bushing for use in toolholding fixtures, jig plates, and drill press setups requiring a 1-inch outside diameter flanged slip-renewable or press-fit bushing.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out all machinery before inserting or removing any toolholder bushing. Ensure the receiving bore is clean and free of burrs or debris before seating the bushing. Consult applicable shop standards and fixture design specifications to confirm correct bushing type and fit class before installation.
