Value Collection SC05879366 Type C Tool Holder Bushing

Product Description

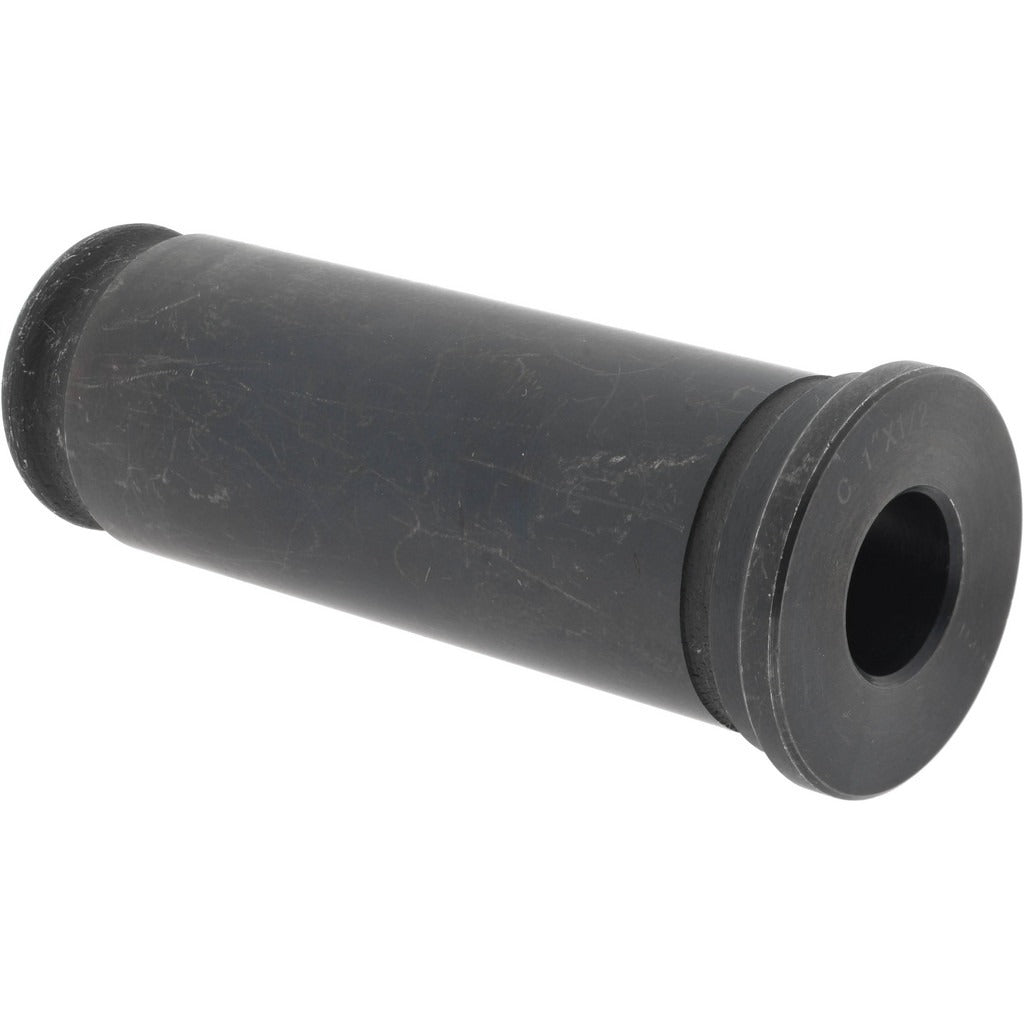

The VALUE COLLECTION SC05879366 is a Type C rotary tool holder bushing designed for use in machine tool setups where precise workpiece or tool alignment is required. With a 0.5 inch (0.5000 inch) inside diameter and a 1 inch (1.0000 inch) outside diameter, this bushing provides a consistent, repeatable fit within compatible tool holder blocks and jig plates. The head thickness measures 3/16 inch (0.2650 inch), and the length under the head is 2-3/4 inches (2.7500 inches). A 2-3/8 inch slot runs along the body for positive drive engagement. Machinists and tool room technicians working with drill jigs, boring fixtures, and similar setups are the primary users of this component.

This Type C bushing is suited for fixed and renewable bushing applications in production drilling, reaming, and boring operations. The slotted body allows for positive angular positioning within the bushing liner. It is appropriate for use in both manual and CNC machining environments where jig bushing standards apply. The 0.5 inch bore accommodates standard drill shanks, reamers, or guide rods of matching diameter. Installation is typical in tool room, fixture shop, and production floor settings.

Key Features

• Type C bushing geometry with slotted body for positive drive and angular location
• 0.5000 inch inside diameter for precise tool or workpiece guidance
• 1.0000 inch outside diameter for standard liner press fit
• 2.7500 inch length under head for extended guidance in deep fixture plates
• 2-3/8 inch slot length for full-engagement drive
• Head thickness of 0.2650 inch (3/16 inch) for low-profile seating

Compatibility

Designed as an OEM-style replacement or direct-fit component for standard Type C rotary tool holder bushing applications in drill jig and machining fixture assemblies.

Installation Notes

Installation of jig bushings is typically performed by tool room machinists or fixture technicians. The bushing should be pressed or inserted into a matching liner with the machine powered down and all cutting tools removed. Verify bore alignment and liner fit before securing the bushing in position. Follow applicable workplace safety standards and fixture design specifications during installation and replacement.
