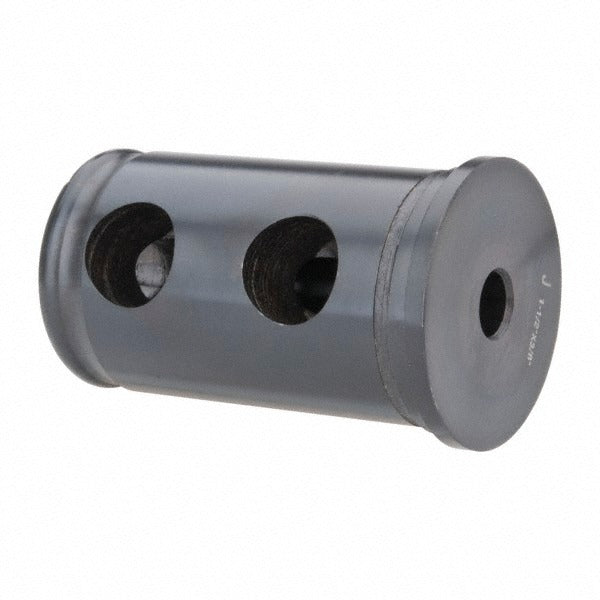

Value Collection SC05879077 Type J Tool Holder Bushing

Product Description

The VALUE COLLECTION SC05879077 is a Type J rotary tool holder bushing designed for use in drill press and machining applications where precise tool location and support are required. With a 0.375 inch inside diameter and a 1.5 inch outside diameter, this bushing guides cutting tools accurately through jig plates and fixtures. The 2.5 inch length under the head provides adequate tool guidance depth for standard workpiece thicknesses. Weighing approximately 1.914 pounds, this is a solid, dimensionally consistent component suited for machine shop and industrial maintenance use. Installation is handled by machinists and toolmakers working with drill jigs and fixture setups.

This Type J bushing is intended for rotary tool holder and drill jig applications in machine shop environments, both in production and maintenance settings. The head design seats flush against the jig plate surface, keeping the bushing positively located during operation. The 11/16 inch D-In dimension and 1-1/8 inch distance between hole centers make it compatible with standard jig plate layouts where head-type bushings are specified. Residential or light DIY use is not a typical application for this component.

Key Features

• Type J head-style bushing for positive seating and retention in drill jig plates
• 0.375 inch inside diameter for accurate tool guidance
• 1.5 inch outside diameter for secure press or slip fit into standard jig plate bores
• 2.5 inch length under head provides extended guidance for deeper workpieces
• 3/16 inch (0.265 inch) head thickness for low-profile seating
• 1-1/8 inch distance between hole centers for standard jig layout compatibility

Compatibility

Designed as an OEM-style replacement or direct-fit component for Type J rotary tool holder bushing applications in standard drill jig and fixture systems requiring a 3/8 inch ID and 1-1/2 inch OD bushing.

Installation Notes

This bushing is installed by machinists or toolmakers as part of drill jig and fixture assembly. Power down and lock out all associated machinery before servicing or replacing bushings in an active fixture. Ensure the jig plate bore is clean and dimensionally correct before pressing or seating the bushing. Follow applicable shop standards and ANSI jig bushing specifications for proper fit class and retention method.
