Value Collection SAAR20618FP7 Cylindrical Insert Bearing

Product Description

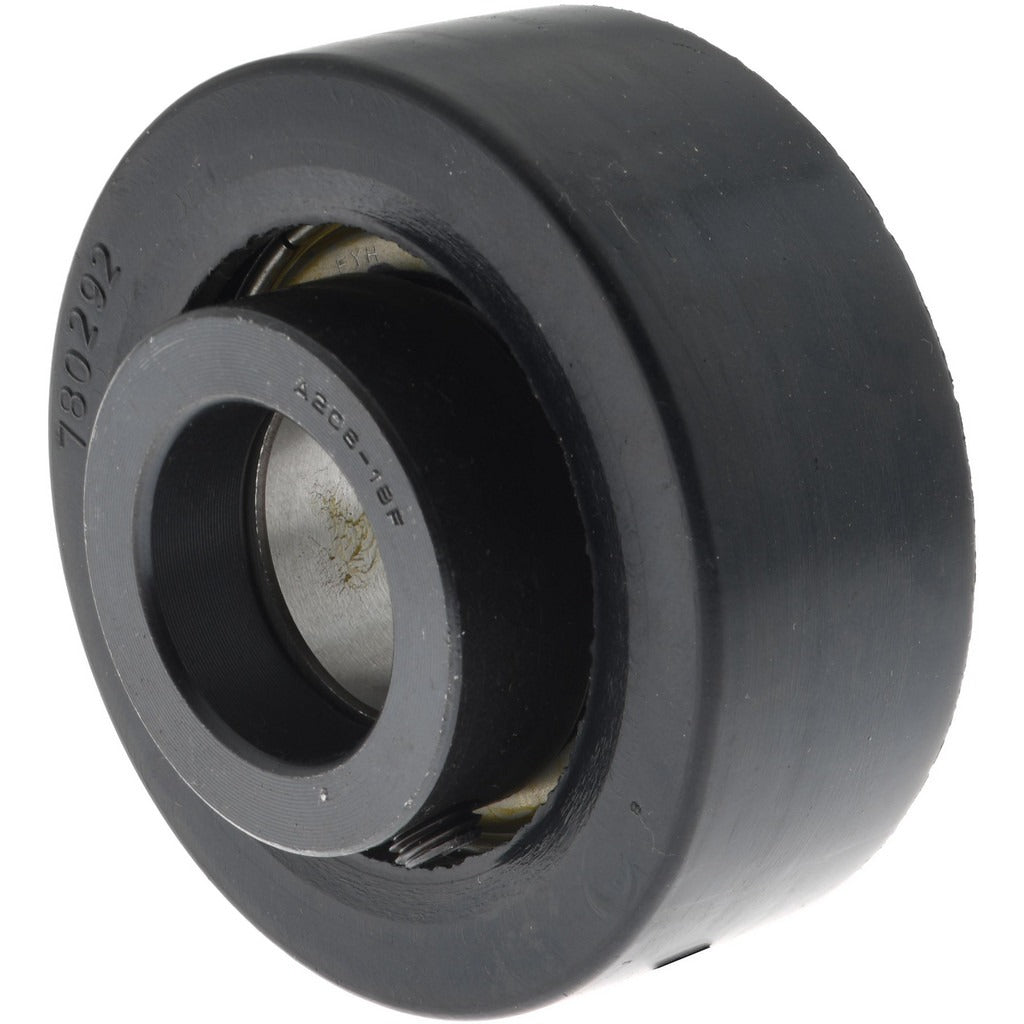

The VALUE COLLECTION SAAR20618FP7 is a cylindrical insert bearing designed for rotating shaft applications where a pre-mounted rolling element is needed in a housed or pillow-block assembly. With a 1-1/8 inch bore (ID) and a 2.441 inch outer diameter (OD), this bearing supports a dynamic load capacity of 4,300 pounds and a static load capacity of 2,500 pounds. The insert design allows it to seat into a standard bearing housing unit, making it a practical choice for maintenance replacement or new equipment builds. Mechanical technicians and millwrights are the typical installers for this type of component.

This cylindrical insert bearing suits light-to-medium industrial machinery, conveyor systems, agricultural equipment, and general power-transmission assemblies that use a 1-1/8 inch shaft. It is sold individually and is appropriate for both OEM equipment builds and field replacement work where the existing insert has worn or failed. Verify shaft size, housing bore, and load requirements against application specifications before ordering.

Key Features

• 1-1/8 inch bore (ID) fits standard 1-1/8 inch diameter shafts
• 2.441 inch outer diameter (OD) for housing fitment
• 4,300 pound dynamic load capacity for rotating load conditions
• 2,500 pound static load capacity for stationary load conditions
• Insert-style design seats into standard bearing housing units
• Sold as a single unit — no minimum quantity beyond one piece

Compatibility

Designed as an OEM-style replacement insert bearing for standard housed bearing assemblies accepting a 1-1/8 inch bore cylindrical insert with a 2.441 inch outer diameter.

Installation Notes

Installation should be performed by a qualified mechanical technician or millwright. Shut down and lock out all power to the equipment before removing the worn bearing or disassembling the housing. Use a bearing press or appropriate driver to seat the insert into the housing without applying force through the rolling elements. Confirm shaft-to-bore fit and housing-to-OD fit tolerances before final assembly.
