Value Collection SA/2 Slitting Slotting Saw Arbor

Product Description

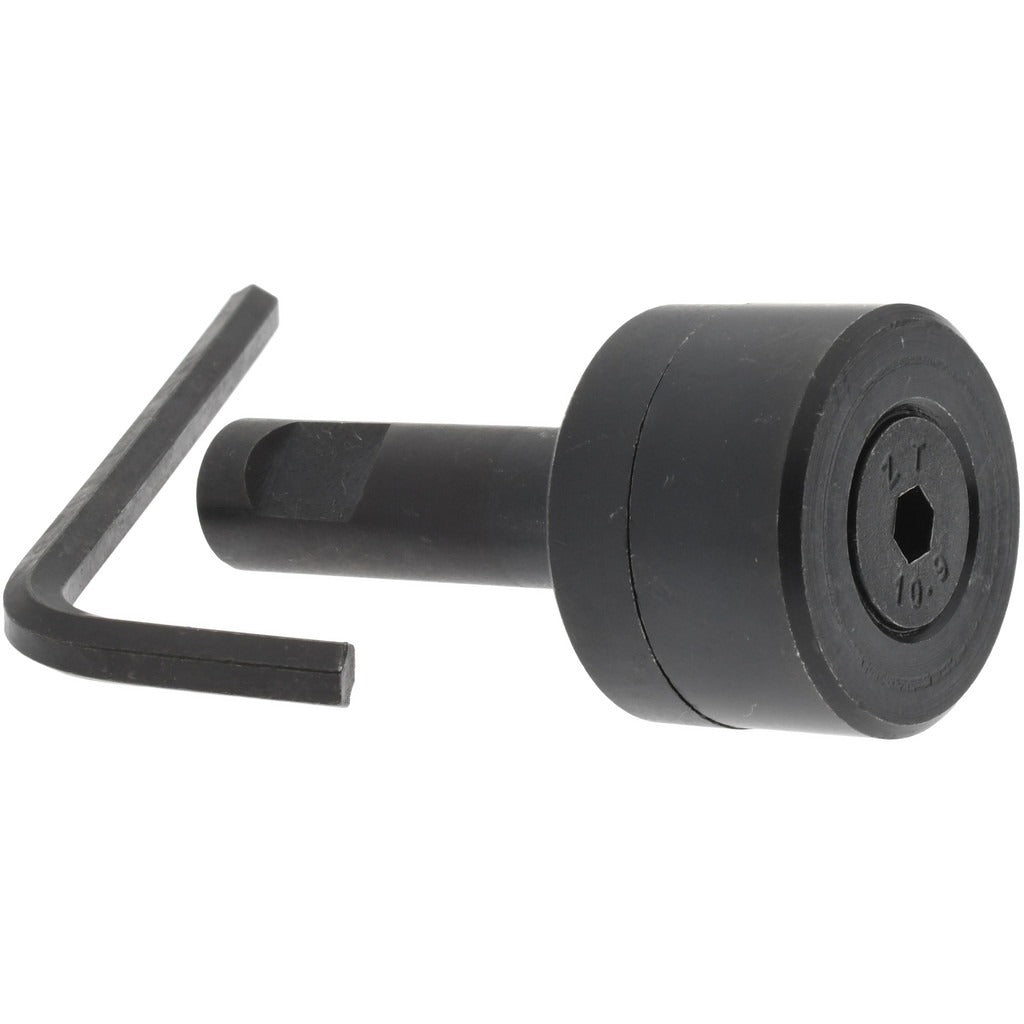

The VALUE COLLECTION SA/2 is a straight-shank slitting and slotting saw arbor designed for use with milling machines and machining centers. It accepts cutter hole diameters of 1/2, 5/8, 3/4, 7/8, and 1 inch, making it a versatile toolholding solution for a wide range of slitting and slotting saw blades. The shank diameter is 0.5 inches, the overall length is 2.58 inches, and the arbor diameter measures 1.259 inches (32.0 millimeters). An Allen key is included. Machinists, tool and die makers, and CNC setup technicians use this arbor in production and job-shop environments for slotting, slitting, and parting operations.

This arbor is suited for horizontal and vertical milling setups where a straight shank is required. The 0.5-inch straight shank fits standard collets and toolholders configured for that diameter. With a projection of 21.5 millimeters, it positions the cutter close to the holder for improved rigidity during cut. It is appropriate for light to medium slitting and slotting work in ferrous and non-ferrous materials when paired with a compatible saw blade.

Key Features

• Accepts five cutter hole diameters: 1/2, 5/8, 3/4, 7/8, and 1 inch
• Straight shank design for use with standard collets and chucks
• Arbor diameter of 1.259 inches (32.0 millimeters) for precise blade seating
• Overall length of 2.58 inches for compact, rigid toolholding
• 21.5-millimeter projection for close cutter positioning
• Includes Allen key for blade installation and removal

Compatibility

Designed as a standard straight-shank slitting and slotting saw arbor compatible with milling machines and machining centers that accept a 0.5-inch straight shank, used with saw blades having 1/2, 5/8, 3/4, 7/8, or 1 inch cutter hole diameters.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and locked out before mounting or removing the arbor. Secure the arbor in the collet or chuck to the appropriate clamping torque per the machine tool manufacturer guidelines, and use the included Allen key to fasten the cutter blade securely to the arbor before initiating any cut.
