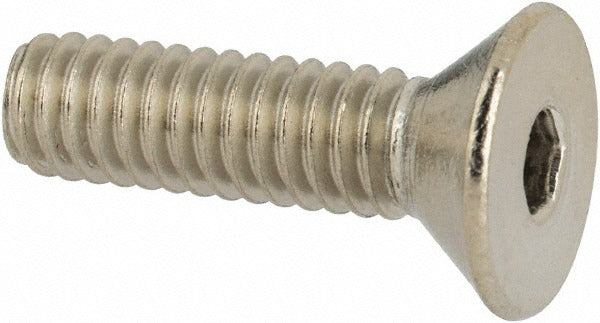

Value Collection S98002312 Flat Socket Cap Screw 8-32

Product Description

The VALUE COLLECTION S98002312 is a flat socket cap screw designed for fastening applications that require a flush or countersunk finish. It features an 82-degree flat head with a 9/64-inch hex socket drive, accepting a standard hex key for installation and removal. Manufactured from 316 stainless steel, this screw offers strong resistance to corrosion and chemical exposure, making it well suited for wet, marine, or chemically active environments. The thread specification is 8-32 UNC with an overall length of 5/8 inches. This fastener is used by mechanical contractors, millwrights, equipment technicians, and maintenance trades across a wide range of industrial and commercial applications.

This screw is appropriate for light-duty structural and mechanical fastening where a low-profile head is required and the fastener must sit flush with or below the surface of the workpiece. Typical applications include panel assembly, equipment enclosures, pump and valve components, and other assemblies exposed to moisture or corrosive conditions. The 316 stainless steel grade provides superior pitting resistance compared to 304 grade, particularly in chloride-rich environments such as coastal installations or pool and water treatment equipment.

Key Features

• 82-degree flat head countersunk profile for flush-mount installation
• 9/64-inch hex socket drive for precise torque application with a standard hex key
• 316 stainless steel construction for enhanced corrosion and chemical resistance
• 8-32 UNC thread form for compatibility with standard inch-series tapped holes
• Overall length of 5/8 inches suitable for thin-panel and light structural fastening

Compatibility

Designed as a standard inch-series flat socket cap screw for use in any application requiring an 8-32 UNC threaded hole with an 82-degree countersunk seat.

Installation Notes

Installation requires a 9/64-inch hex key or Allen wrench. The mating hole should be properly countersunk to 82 degrees to ensure full head seating and flush finish. Power down or de-energize any equipment before fastener service on live panels or enclosures. Follow applicable mechanical codes and equipment manufacturer torque guidelines for the joint material and assembly type.
