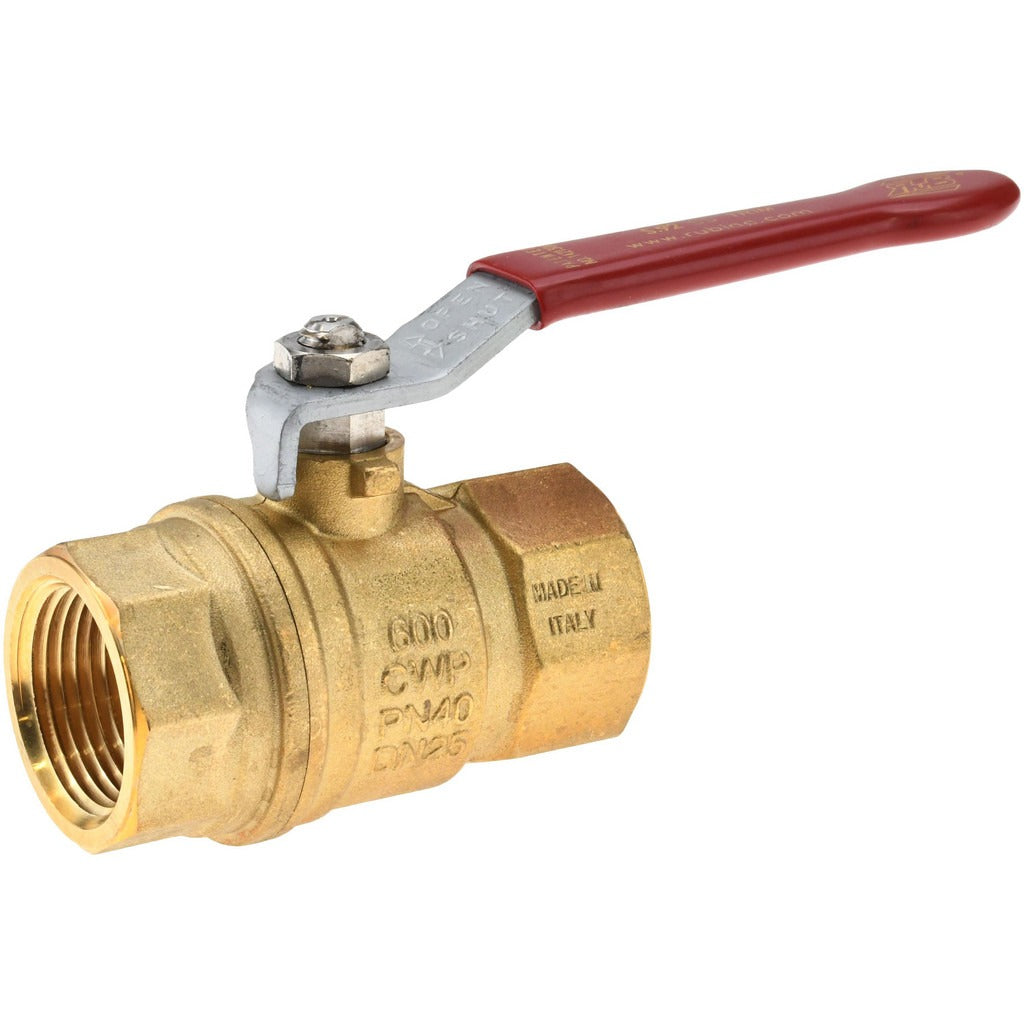

Value Collection S92F48R 1 Inch Full Port Ball Valve

Product Description

The VALUE COLLECTION S92F48R is a one-way manual ball valve designed for 1-inch pipe systems requiring reliable, full-port flow control. The full-port design allows unrestricted flow with minimal pressure drop, making it well suited for applications where flow capacity is a priority. The brass body provides corrosion resistance in common fluid service conditions, while the stainless steel trim and reinforced PTFE seat deliver durable, low-friction operation across repeated cycles. The lever handle allows for quick quarter-turn open and close action. This valve weighs 1.326 pounds and accepts 1-inch FNPT connections on both ends. It is a standard replacement or new-installation component for plumbing, HVAC, and industrial fluid systems.

This valve is used in residential and light commercial plumbing and HVAC installations where manual shutoff or isolation of a 1-inch line is required. Common applications include water supply lines, hydronic heating and cooling circuits, compressed air distribution, and general fluid handling systems. The FNPT x FNPT end connections allow direct installation into threaded pipe systems without additional adapters. Licensed plumbers and HVAC technicians typically install this type of valve in both new construction and service or retrofit scenarios.

Key Features

• Full-port design minimizes pressure drop and maintains maximum flow capacity
• Brass body construction offers corrosion resistance in standard fluid service environments
• Stainless steel trim provides long-term durability and resistance to wear
• Reinforced PTFE seat ensures low-friction, leak-resistant sealing over repeated cycles
• Lever handle enables quick quarter-turn operation for fast manual shutoff
• FNPT x FNPT end connections for direct installation into standard threaded pipe systems

Compatibility

Designed as an OEM-style replacement or direct-install valve for 1-inch threaded pipe systems in residential and commercial plumbing, HVAC hydronic circuits, and general fluid handling applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local plumbing codes and IPC guidelines. Shut off the upstream water or fluid supply and depressurize the line before removing any existing valve or making new connections. Apply thread sealant or PTFE tape to the male threads of the mating pipe before threading into the FNPT ports. Do not over-torque threaded connections, as this can crack the valve body or distort the seat sealing surfaces.
