Value Collection RVBS38-10 Ring Terminal 2 Awg Crimp

Product Description

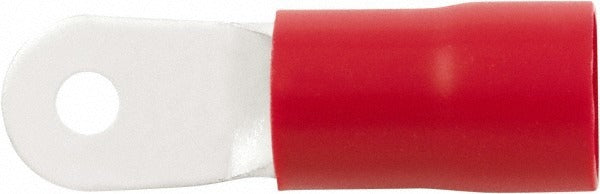

The VALUE COLLECTION RVBS38-10 is a partially insulated circular ring terminal designed for crimp-style electrical connections on 2 AWG wire. The terminal features a copper contact body with a red vinyl insulation sleeve, providing reliable conductivity and basic mechanical protection at the wire entry point. At 2.047 inches in overall length and 0.602 inches in ring width, it accepts a 3/8-inch stud for secure panel or lug termination. Licensed electricians and experienced electrical technicians install this type of terminal in power distribution, battery, and heavy-gauge wiring applications where a permanent, low-resistance connection is required.

This ring terminal is suited for residential, commercial, and light industrial wiring tasks involving 2 AWG copper conductors. Typical applications include battery cable terminations, grounding connections, inverter wiring, and main service panel work where a 3/8-inch stud size is specified. The partial insulation covers the barrel while leaving the ring exposed for direct stud contact, which is standard practice in these installations. The red color coding aids in polarity identification during installation and future service.

Key Features

• Compatible with 2 AWG wire (38.00 sq mm cross-section)
• Crimp connection type for fast, tool-applied termination
• Copper contact material for low-resistance electrical conductivity
• 3/8-inch stud size for common panel and lug hardware
• Red vinyl partial insulation for barrel protection and polarity color coding
• cUL Listed, UL Listed, and RoHS Compliant

Compatibility

Designed as a standard crimp ring terminal for 2 AWG wire installations requiring a 3/8-inch stud termination point.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before terminating any ring terminal on live conductors. Use a calibrated ratcheting crimp tool rated for the wire gauge and terminal type to achieve a proper mechanical and electrical crimp. Do not solder over a crimped connection, as this can introduce brittleness at the barrel transition.
