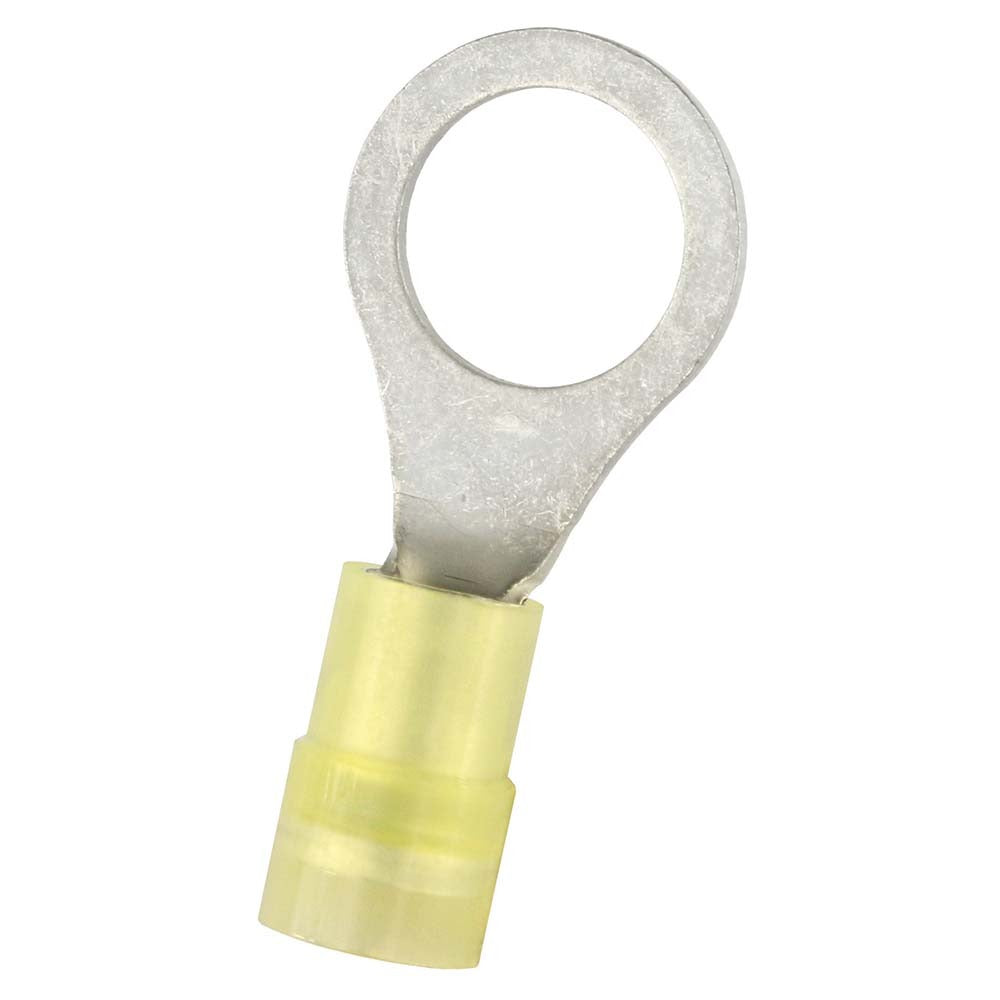

Value Collection RNYD5-10 Ring Terminal 12-10 Awg 50 Pack

Product Description

The VALUE COLLECTION RNYD5-10 is a partially insulated circular ring terminal designed for crimp-style wire termination in electrical wiring applications. Built with a copper contact and a TiN (titanium nitride) plating, it provides a reliable, low-resistance connection at the termination point. The nylon insulation sleeve partially covers the barrel, protecting the crimp zone while leaving the ring exposed for stud mounting. Each terminal measures 1.339 inches in overall length and 0.591 inches in ring width, accepting wire gauges from 12 to 10 AWG. Licensed electricians and experienced wiring technicians install these terminals in control panels, distribution boards, and field wiring assemblies.

The RNYD5-10 is suited for residential and light commercial electrical work where a secure, semi-insulated ring connection is required. It mounts to a 3/8-inch (M10) stud and is color-coded yellow to indicate 12 to 10 AWG wire range compatibility, following standard wire terminal color conventions. Typical applications include motor wiring, panel grounding, and equipment bonding where a fastened ring connection to a lug or terminal block is needed. This listing is for a package of 50 terminals.

Key Features

• Partially insulated nylon sleeve protects the crimp barrel while leaving the ring open for stud fastening
• Copper contact with TiN plating for durable, corrosion-resistant conductivity
• Accepts 12 to 10 AWG wire (4.00 to 6.00 sq mm) with a crimp-style connection
• Fits 3/8-inch (M10) studs for broad compatibility with standard hardware
• Yellow color coding follows industry AWG range identification standards
• Sold in a 50-piece package to support job-site and shop stocking needs

Compatibility

Designed as a standard crimp ring terminal for use with 12 to 10 AWG copper conductors on 3/8-inch or M10 mounting studs in electrical panel and equipment wiring applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements for the application. De-energize and lock out the circuit before terminating any conductors. Use a calibrated ratcheting crimp tool rated for the terminal and wire gauge combination to ensure a proper mechanical and electrical connection. Do not use open-barrel crimp tools or pliers as substitutes, as an improper crimp can cause high-resistance connections or conductor pullout.
