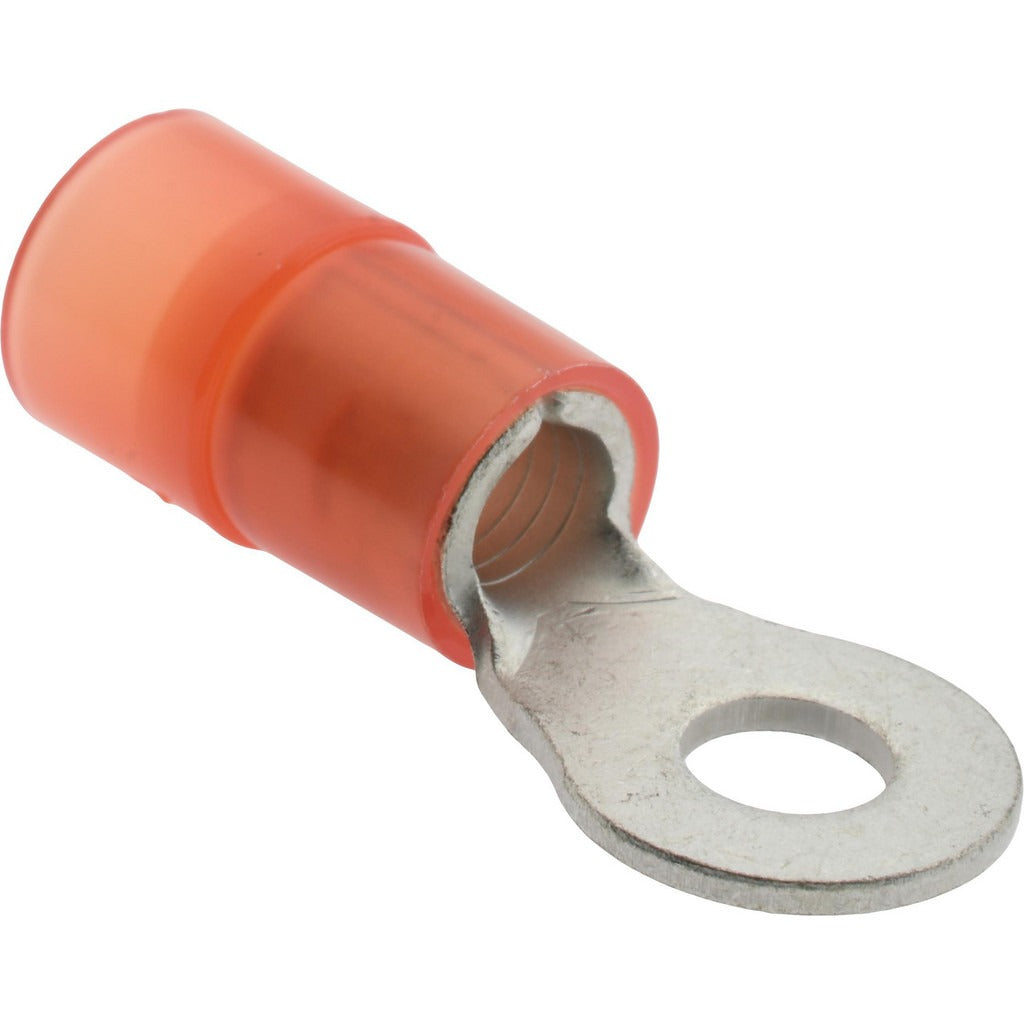

Value Collection RNYBM8-5-C Ring Terminal 8 Awg Crimp

Product Description

The VALUE COLLECTION RNYBM8-5-C is a partially insulated circular ring terminal designed for crimp-style electrical connections on 8 AWG conductors. The terminal features a copper contact with a red nylon insulation sleeve and accepts a No. 10 stud size. Overall length measures 1.232 inches with a ring width of 0.472 inches and a contact thickness of 0.047 inches. This type of terminal is a standard component in control wiring, panel builds, and equipment terminations where a secure, corrosion-resistant ring lug connection is required. Meets UL, cUL, and RoHS compliance standards.

This ring terminal is suited for residential and commercial electrical panel work, HVAC control wiring, and general equipment wiring where 8 AWG conductors terminate at screw or stud connections. The partially insulated design exposes the barrel for inspection of the crimp while the nylon sleeve protects the wire entry point. Electricians, HVAC technicians, and panel builders routinely use this style of terminal in junction boxes, motor starters, and control panels requiring a reliable mechanical and electrical connection at a No. 10 stud.

Key Features

• Partially insulated with red nylon sleeve for wire entry protection and polarity identification
• Copper contact material for reliable conductivity and corrosion resistance
• Crimp connection type compatible with standard 8 AWG wire
• Fits No. 10 stud size (5.30 mm)
• UL Listed, cUL Listed, and RoHS Compliant
• Compact form factor: 1.232 inches long, 0.472 inches wide

Compatibility

Designed as a standard crimp ring terminal for use with 8 AWG copper or copper-clad conductors terminating at No. 10 screw or stud connections in electrical and control wiring applications.

Installation Notes

Installation should be performed by a licensed electrician or qualified technician in accordance with NEC requirements. De-energize and lock out the circuit before making any terminal connections. Use a calibrated ratcheting crimp tool rated for the wire gauge and terminal barrel size to ensure a gas-tight crimp. Avoid over-stripping the conductor, as exposed wire beyond the barrel can create a short-circuit hazard.
