Value Collection RNYB14-10-C Ring Terminal 6 Awg Crimp

Product Description

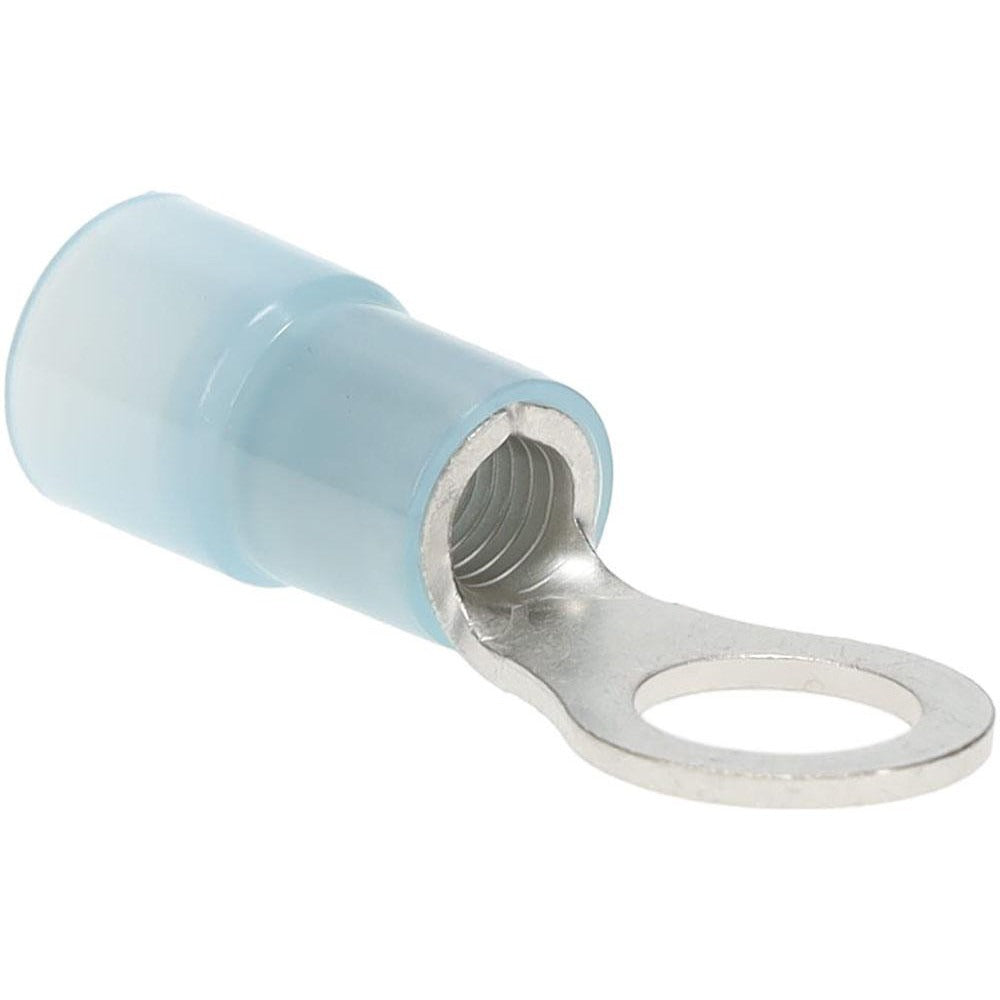

The VALUE COLLECTION RNYB14-10-C is a partially insulated circular ring terminal designed for crimp-style wire termination on 6 AWG conductors. The copper contact provides reliable electrical conductivity, while the blue nylon insulation sleeve offers partial protection at the barrel end. At 1.713 inches long and 0.630 inches wide, this terminal fits a 3/8-inch stud and suits standard lug-style termination points. It is used by electricians and wire harness technicians wherever a secure, low-resistance ring connection is required on medium-gauge wire runs.

This ring terminal is suited for residential and commercial electrical panel wiring, equipment grounding, motor lead terminations, and control panel assembly. The 6 AWG wire compatibility and 3/8-inch stud size make it a common choice for connecting ground leads, battery cables, and power distribution wiring in both fixed and mobile electrical systems. Minimum order quantity is 25 pieces per order.

Key Features

• Partially insulated nylon sleeve in blue — standard color code for 6 AWG terminations
• Copper contact material for low-resistance conductivity
• Crimp connection type — no soldering required
• 3/8-inch stud size (10.50 mm) for broad lug and bus bar compatibility
• cUL Listed, UL Listed, and RoHS Compliant
• Overall length of 1.713 inches with a ring width of 0.630 inches

Compatibility

Designed for use with 6 AWG copper conductors (14.00 sq mm) and 3/8-inch stud termination points in standard electrical installations.

Installation Notes

Installation is performed by licensed electricians or qualified wire harness technicians using a ratcheting or hex-die crimping tool appropriate for 6 AWG terminals. De-energize and lock out the circuit before terminating or disturbing any conductors. Ensure the wire is stripped to the correct length to seat fully in the barrel before crimping. Follow NEC guidelines for conductor sizing, terminal torque, and lug installation in panel or equipment applications.
