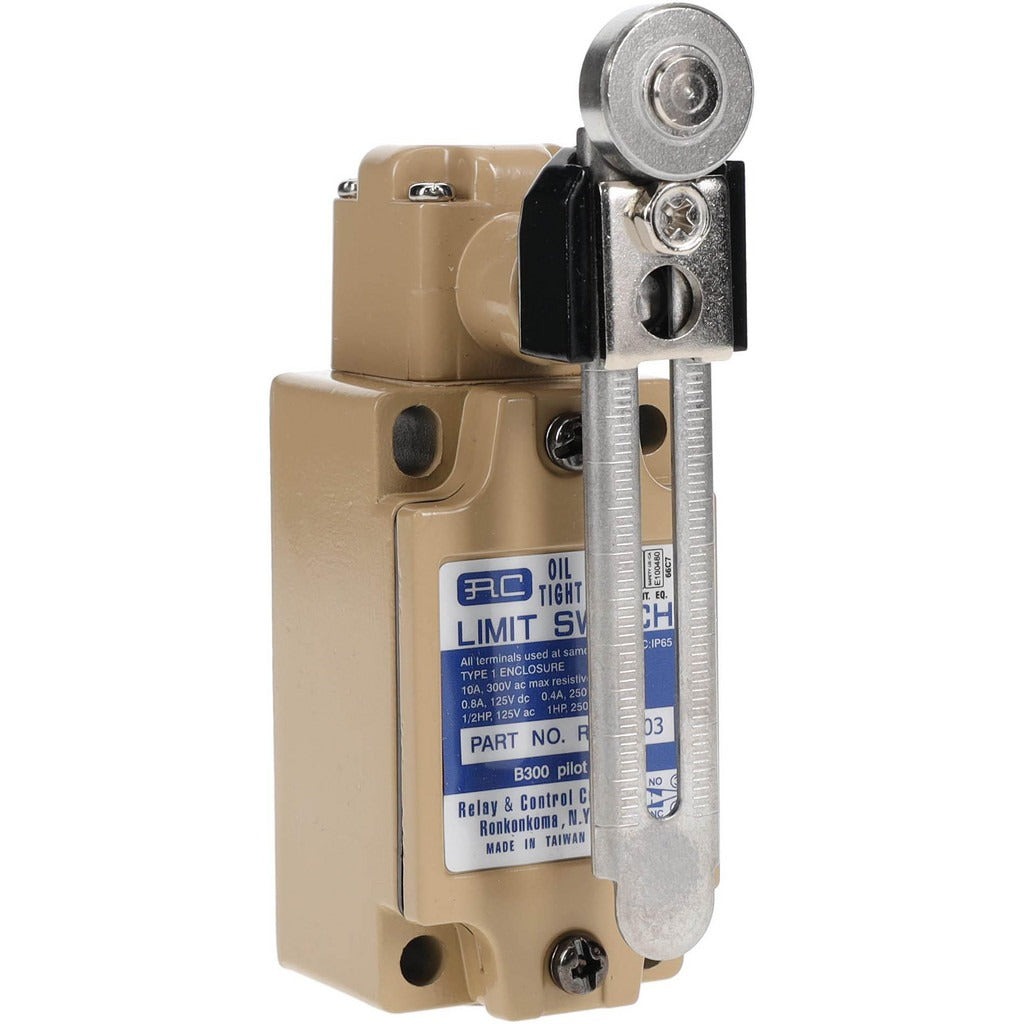

Value Collection RCL-303 Limit Switch Spdt Nc Roller Lever

Product Description

The VALUE COLLECTION RCL-303 is a general purpose limit switch built for industrial and commercial control applications. It features a single-pole double-throw (SPDT) contact form with a normally closed (NC) configuration, making it suitable for position sensing, safety interlocks, and machine control circuits. The actuator is a roller lever mounted on the side of the metal and plastic body, providing reliable mechanical actuation when a moving part contacts the lever. Screw terminals simplify field wiring and allow for secure connections in demanding environments. The RCL-303 carries a UL Listed rating, meeting recognized safety standards for electrical control components.

This limit switch is suited for use in general purpose electrical and mechanical control systems, including conveyor systems, automated machinery, door position sensing, and safety shutoff circuits. It is appropriate for both light industrial and commercial installations where a compact, side-actuated roller lever switch is needed. Licensed electricians and industrial maintenance technicians are the primary installers. It is sold individually as a single-unit package.

Key Features

• SPDT contact form with NC configuration for fail-safe and interlock circuit applications
• Side-mounted roller lever actuator for precise mechanical position detection
• Screw terminal connections for secure, field-serviceable wiring
• Metal and plastic body construction for durability in general purpose environments
• UL Listed to recognized electrical safety standards

Compatibility

Designed as a general purpose replacement or new-installation limit switch for standard SPDT roller lever applications in industrial and commercial control panels and machinery.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before wiring or mounting the switch. Screw terminals should be tightened to the wire manufacturer recommendations and confirmed secure before restoring power. Verify actuator alignment with the mechanical contact surface before commissioning to ensure consistent actuation travel.
