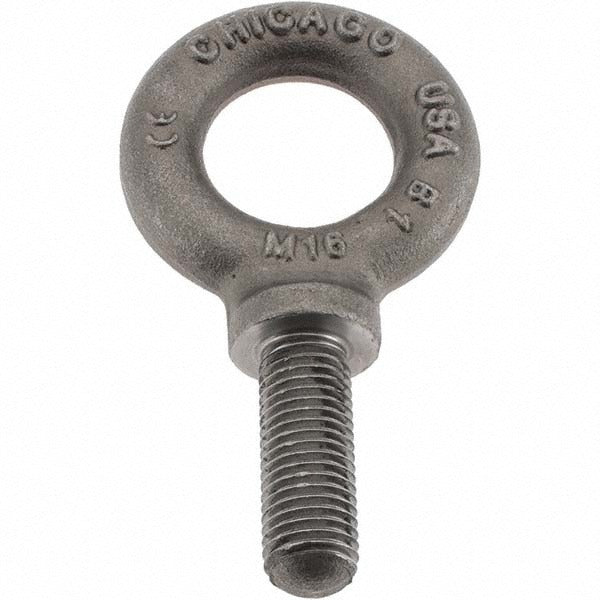

Value Collection RB58016-002B M16 Shoulder Eye Bolt 2 Pack

Product Description

The VALUE COLLECTION RB58016-002B is a fixed lifting eye bolt with a shoulder, designed for overhead lifting and rigging applications in industrial and construction environments. The bolt features a fully threaded shank with an M16 x 2.00 thread profile and is manufactured from Grade C15 steel for reliable load-bearing performance. The eye measures 35 millimeters inside diameter and 65 millimeters outside diameter. With a rated lifting capacity of 1,596 kilograms, this eye bolt is suited for demanding lift points where a shouldered design is required to seat flush against a surface. Sold in a pack of two.

This shoulder eye bolt is used in industrial rigging, machinery installation, and structural lifting scenarios where a fixed, non-swivel attachment point is needed. The shouldered configuration allows the bolt to bear against a surface, distributing load properly when the bolt is fully engaged. Fully threaded along a 27-millimeter shank length, it threads directly into tapped holes in metal components, lifting fixtures, or structural steel assemblies. Suitable for use with shackles, hooks, and wire rope rigging hardware.

Key Features

• Fixed eye bolt with shoulder for proper load seating against mating surface
• M16 x 2.00 fully threaded shank, 27 millimeters thread length
• Eye inside diameter: 35 millimeters; eye outside diameter: 65 millimeters
• Rated lifting capacity: 1,596 kilograms
• Grade C15 steel construction for structural load-bearing service
• Metric measurement system; UNSPSC 31161610
• Sold as a 2-piece pack

Compatibility

Designed for use in metric-threaded tapped holes requiring an M16 x 2.00 fixed shoulder eye bolt for overhead lifting and rigging attachment points.

Installation Notes

Installation should be performed by qualified riggers or millwrights following applicable ASME B30 or OSHA rigging standards. Always ensure the tapped hole is clean and the bolt is threaded fully until the shoulder seats flush against the mating surface before applying any load. Never side-load a fixed eye bolt beyond its rated in-line capacity, and inspect threads and the eye for deformation before each use. Derate capacity when the load angle deviates from vertical per applicable rigging charts.
