Value Collection R63286843 Thumb Screw 8-32 Oval Head

Product Description

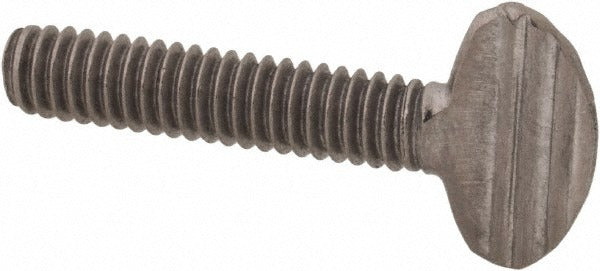

The VALUE COLLECTION R63286843 is an 18-8 stainless steel thumb screw with an oval head profile and a 8-32 UNC thread. It measures 3/4 inch in overall length with a head diameter of 0.36 inches and a head height of 0.38 inches. The 18-8 stainless steel construction provides solid corrosion resistance in a wide range of service environments. This thumb screw is designed for hand-tightened fastening applications where tools are not required for routine adjustment or removal. Technicians in HVAC, electrical, and general mechanical service work commonly use oval head thumb screws for access panels, cover plates, and equipment enclosures.

This thumb screw is suited for light-duty hand-fastened assemblies in both residential and commercial settings. Its oval head profile sits low against the mating surface, making it a practical choice for applications where a flush or near-flush finish is preferred. Without a shoulder, it threads directly into a tapped hole or threaded insert. Typical installations include equipment access panels, junction box covers, and enclosure lids where frequent removal is expected.

Key Features

• 18-8 stainless steel construction for corrosion resistance in damp or mildly corrosive environments
• Oval head profile for a low-profile, near-flush seating surface
• 8-32 UNC thread for compatibility with standard inch-system tapped holes
• 3/4 inch overall length suitable for light panel fastening applications
• Without shoulder design threads directly into tapped holes or inserts
• Hand-tightened fastening eliminates the need for a tool during routine access

Compatibility

Designed as a standard inch-system thumb screw for use in any application requiring an 8-32 UNC threaded, oval head hand fastener in 18-8 stainless steel.

Installation Notes

Installation is performed by hand into a pre-tapped 8-32 UNC hole or threaded insert. Power down or de-energize any equipment before accessing panels or enclosures secured by this fastener. Do not use power tools to drive this thumb screw, as oval head thumb screws are rated for hand torque only and the head can be damaged by power-driven installation.
