Value Collection R63098242 Slotted Spring Pin 420 Ss

Product Description

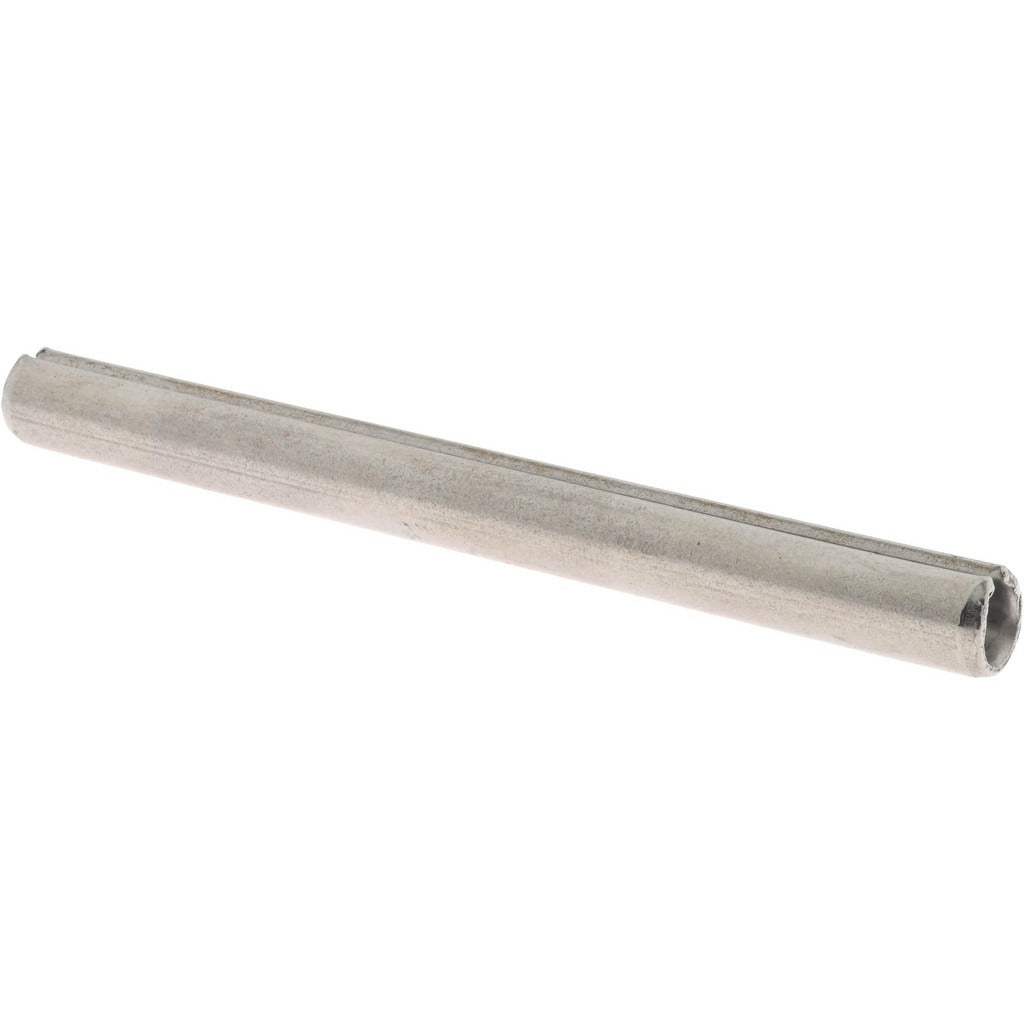

The VALUE COLLECTION R63098242 is a slotted spring pin manufactured from grade 420 stainless steel with a bright finish. Slotted spring pins, also called roll pins, are cylindrical fasteners with a longitudinal slot that allows the pin to compress during installation and exert outward spring force against the bore wall. This pin measures 3.5 inches in length and 5/16 inch in diameter. It is used to align, retain, or lock mating components in mechanical assemblies. Maintenance technicians, millwrights, and machine builders typically install these fasteners in industrial and commercial equipment applications.

This slotted spring pin is suited for general-purpose mechanical assembly work where corrosion resistance and moderate strength are required. Grade 420 stainless steel provides good hardness and wear resistance, making it appropriate for environments with exposure to moisture or mild chemicals. It is sized for 5/16-inch bored holes in shafts, housings, levers, and similar components.

Key Features

• Grade 420 stainless steel construction for corrosion and wear resistance
• Bright finish for dimensional consistency and clean appearance
• 3.5-inch length accommodates deeper bore retention applications
• 5/16-inch diameter fits standard bored holes in mechanical assemblies
• Slotted design allows radial compression for secure interference fit

Compatibility

Designed as a general-purpose slotted spring pin for use in standard 5/16-inch diameter bored holes across a wide range of mechanical assemblies and equipment types.

Installation Notes

Slotted spring pins are typically installed using a pin punch and hammer or an arbor press — drive the pin squarely into the bore to avoid cocking or splitting the slot. De-energize and lock out all equipment before performing fastener installation or removal on live machinery. Ensure the receiving bore is clean, deburred, and within the appropriate tolerance for the pin diameter before driving. Wear appropriate eye protection during installation.
