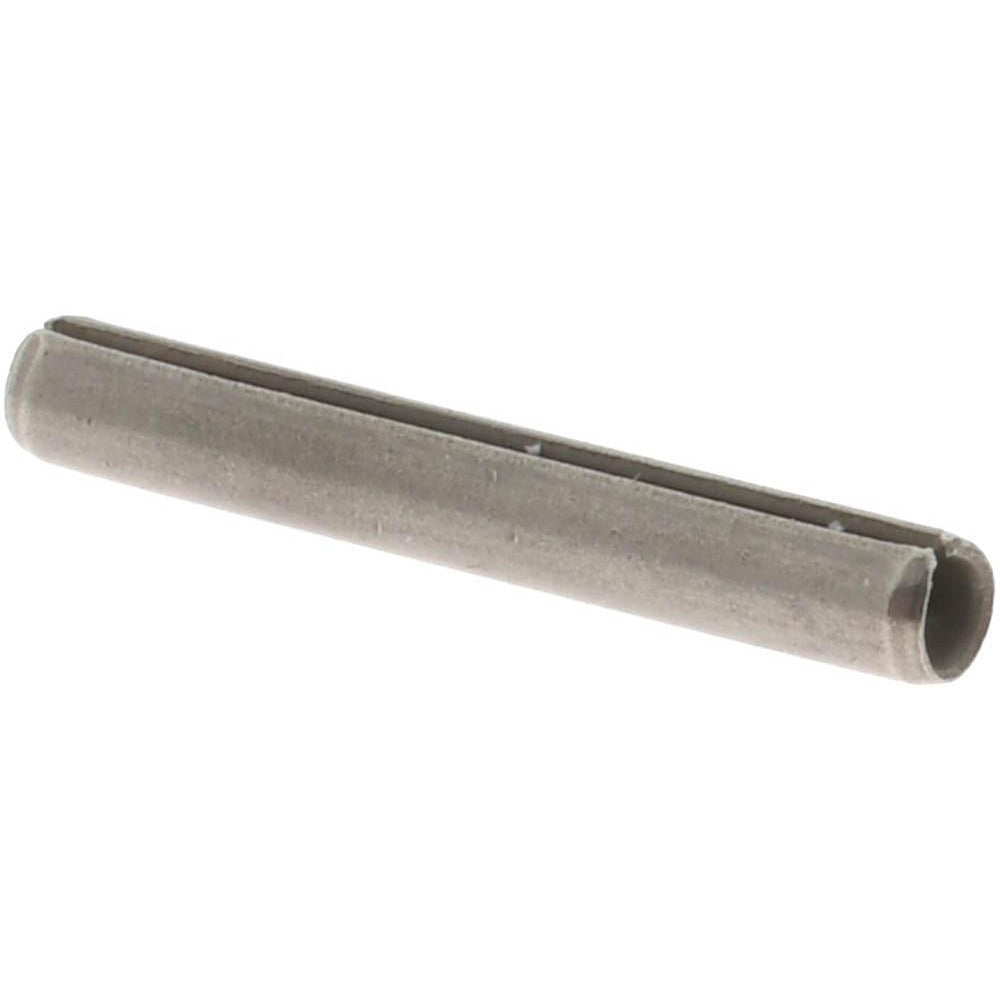

Value Collection R63094245 Slotted Spring Pin 420 Ss

Product Description

The VALUE COLLECTION R63094245 is a slotted spring pin manufactured from grade 420 stainless steel with a bright finish. Spring pins, also called roll pins, compress during installation and expand against the bore wall to create a secure, self-retaining fit without adhesives or secondary fasteners. This pin measures 7/16 inches in overall length and 1/16 inch in diameter, making it suited for compact assemblies where precise fastening in tight spaces is required. Grade 420 stainless steel provides corrosion resistance and adequate hardness for general-duty mechanical applications. Machinists, millwrights, and maintenance technicians working on light machinery, fixtures, and mechanical assemblies are the typical installers.

This slotted spring pin is used in light-duty to medium-duty mechanical assemblies across manufacturing, maintenance, and industrial fixture applications. Its small diameter and fractional length suit it for pin-retained shafts, hinges, linkages, and alignment applications where a removable or semi-permanent pin is needed. The inch-dimensioned sizing fits standard inch-series bored holes. This pin does not meet military specifications and is intended for commercial and industrial use rather than mil-spec-controlled assemblies.

Key Features

• Grade 420 stainless steel construction for corrosion resistance in general-duty environments
• Bright finish for dimensional consistency and clean installation into bored holes
• Slotted design allows radial compression during installation for a self-retaining fit
• Compact 7/16-inch length suits confined assemblies and small mechanical components
• 1/16-inch diameter matches standard inch-series bore tolerances
• Commercial-grade specification — does not meet military specifications

Compatibility

Designed as a standard commercial-grade slotted spring pin for inch-series bored holes in light-duty mechanical assemblies, fixtures, and linkages requiring a 1/16-inch diameter pin.

Installation Notes

Slotted spring pins are installed by machinists or maintenance technicians using a pin punch and hammer or an arbor press. Ensure the receiving bore is clean, properly sized, and free of burrs before driving the pin. Never reuse a spring pin that has been fully driven and removed, as repeated cycling degrades the retention force. Follow all applicable machinery safety lockout and tagout procedures before servicing any assembly containing these pins.
