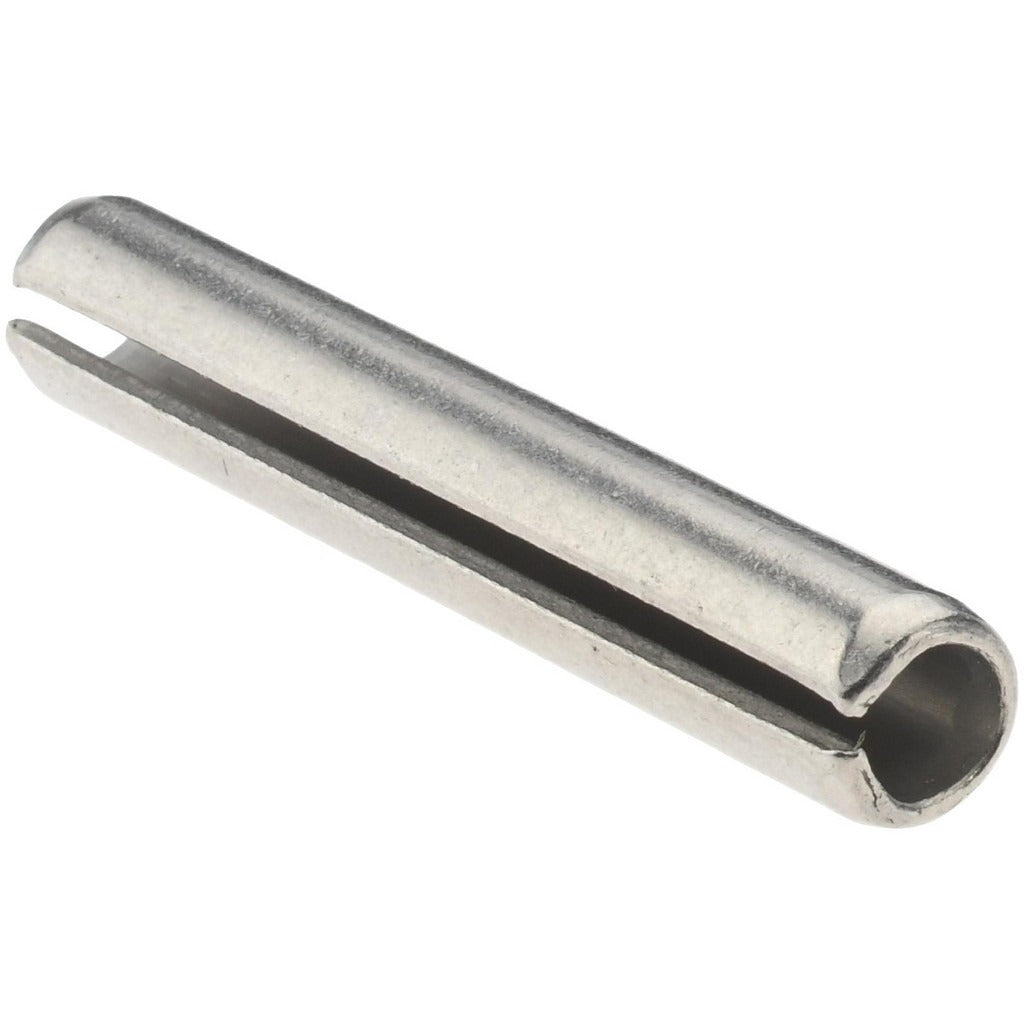

Value Collection R63093484 Slotted Spring Pin 420 Ss

Product Description

The VALUE COLLECTION R63093484 is a slotted spring pin designed for use in mechanical assemblies where a reliable, removable fastening solution is needed. Measuring 0.25 inches in diameter and 1.5 inches in overall length, this pin is manufactured from Grade 420 stainless steel with a bright finish. The slotted design allows the pin to compress during installation and exert radial tension against the bore wall, providing a secure hold. It is sized to inch-system specifications and suited for use in light to medium-duty mechanical, industrial, and maintenance applications.

Slotted spring pins of this type are commonly installed in shaft-to-hub connections, linkage assemblies, hinges, and machinery components across industrial, HVAC, plumbing, and general mechanical service environments. Grade 420 stainless steel provides moderate corrosion resistance along with good hardness, making this pin appropriate for environments where light moisture exposure or chemical contact may occur. Technicians and machinists working in both shop and field settings routinely use pins of this specification for component alignment and locking tasks.

Key Features

• Slotted spring design compresses for secure radial-tension fit in drilled holes
• Grade 420 stainless steel construction offers moderate corrosion resistance and good hardness
• Bright finish for consistent dimensional tolerance and clean appearance
• Inch-system sizing: 0.25 inches diameter, 1.5 inches length
• Sold individually per package unit; minimum order quantity applies

Compatibility

Designed as a standard inch-series slotted spring pin suitable for use in drilled holes requiring a 0.25-inch nominal bore diameter across general mechanical and industrial assemblies.

Installation Notes

Slotted spring pins are typically installed by machinists or maintenance technicians using a pin punch and hammer or an arbor press. The receiving bore should be clean, free of burrs, and drilled to the appropriate tolerance for the nominal pin diameter. Always verify bore depth and alignment before driving the pin to avoid shearing or deforming the pin during installation. Removal is accomplished with a pin punch of appropriate diameter driven from the accessible end of the bore.
