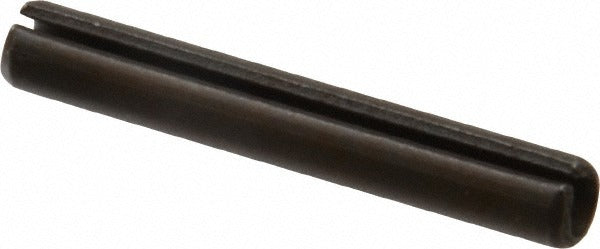

Value Collection R63093443 Slotted Spring Pin 420 Ss

Product Description

The VALUE COLLECTION R63093443 is a slotted spring pin designed for precision fastening applications across mechanical assemblies. This pin measures 0.2188 inches (7/32 inch) in diameter and 1.5 inches in length, manufactured from Grade 420 stainless steel with a bright finish. The slotted design allows the pin to compress on insertion and exert radial pressure against the bore wall, providing secure retention without permanent deformation of the host material. It is installed by machinists, maintenance mechanics, and assembly technicians working on shafts, linkages, hinges, and other mechanical connections requiring a reliable removable retaining pin.

This slotted spring pin is suited for use in industrial machinery, mechanical assemblies, and equipment maintenance applications where corrosion resistance and dimensional consistency are required. The Grade 420 stainless steel construction offers moderate corrosion resistance along with hardness suitable for high-stress insertion and extraction cycles. Typical applications include shaft alignment, pivot assemblies, and component-to-shaft retention in environments exposed to moisture or mild chemicals. This pin is sold individually with a minimum order quantity of 100 units.

Key Features

• Slotted design compresses on insertion for secure radial retention in bored holes
• Grade 420 stainless steel construction provides hardness and moderate corrosion resistance
• Bright finish for consistent surface quality and dimensional accuracy
• 0.2188 inches (7/32 inch) diameter fits standard inch-series bored holes
• 1.5 inches overall length suits a range of shaft and linkage thicknesses
• Inch system of measurement for direct compatibility with standard inch-series tooling and specifications

Compatibility

Designed as a standard inch-series slotted spring pin for use in mechanical assemblies requiring a 7/32 inch diameter retention pin in Grade 420 stainless steel.

Installation Notes

Installation is performed using a pin driver or punch and hammer sized to the pin diameter. De-energize and lock out all equipment before installing or removing spring pins from operating assemblies. Ensure the receiving bore is clean, free of burrs, and within the specified tolerance for the pin diameter to allow proper compression and seating. Do not reuse pins that show visible deformation, cracking, or corrosion, as fatigue failure may occur after repeated compression cycles.
