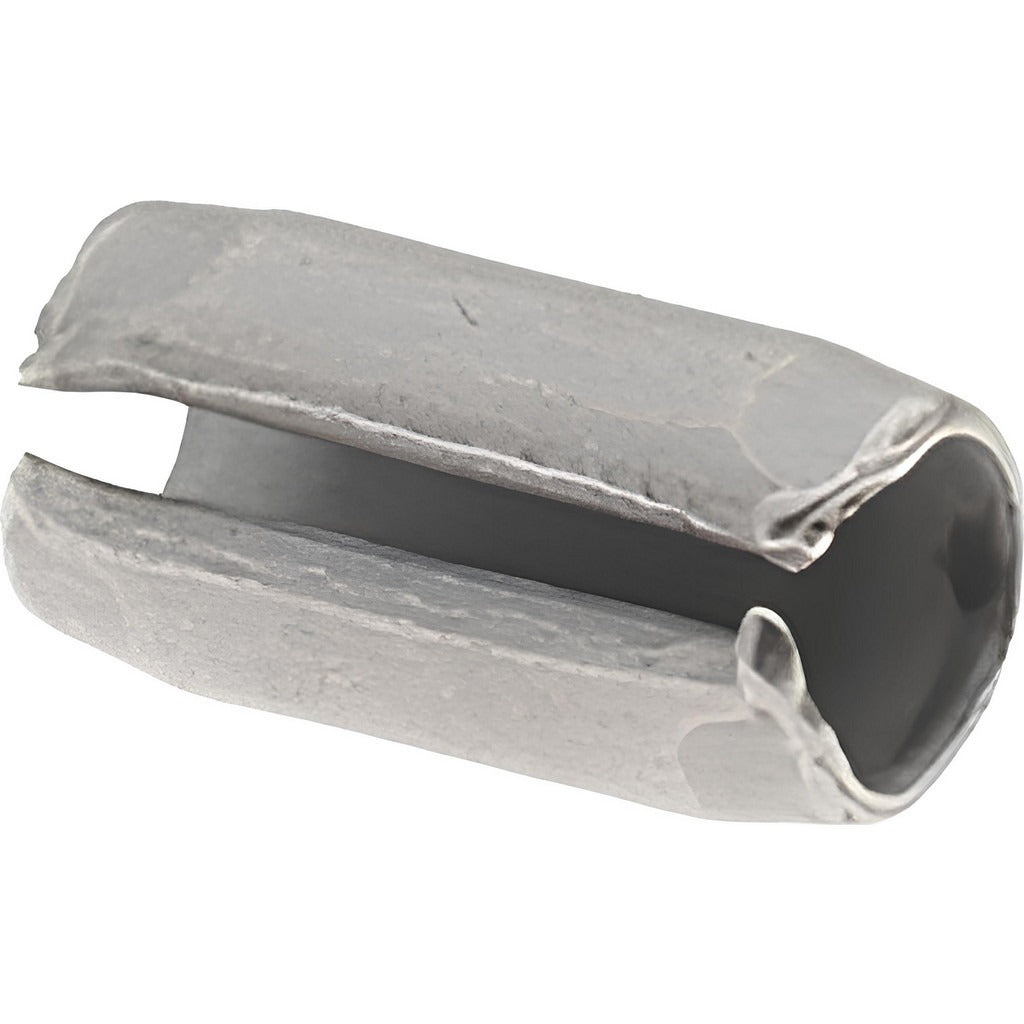

Value Collection R63090249 Slotted Spring Pin 420 Ss

Product Description

The VALUE COLLECTION R63090249 is a slotted spring pin designed for light-duty fastening and alignment applications across mechanical assemblies. Measuring 0.125 inches in diameter and 0.25 inches in overall length, this pin is manufactured from 420 stainless steel with a bright finish. The slotted design allows the pin to compress during installation, creating a secure interference fit within the mated hole. Machinists, maintenance technicians, and assembly professionals use this type of pin where corrosion resistance and consistent holding force are required in compact fastener applications.

This slotted spring pin is suited for use in precision mechanical assemblies, tooling fixtures, and equipment where a small-diameter retention or alignment pin is needed. The 420 stainless steel construction provides moderate corrosion resistance, making it appropriate for general industrial environments. Sold individually per package, with a minimum order quantity of 100 pieces, this pin is typically purchased in volume for production or maintenance stock applications.

Key Features

• Slotted design compresses on installation for a secure interference fit
• 420 stainless steel construction offers moderate corrosion resistance
• Bright finish for clean, consistent surface condition
• Compact 0.125 inch diameter by 0.25 inch length for tight-clearance applications
• Inch measurement system; does not meet military specifications

Compatibility

Designed as a standard slotted spring pin for use in mechanical assemblies requiring a 0.125 inch diameter pin hole and 0.25 inch engagement depth. Consult assembly drawings to confirm hole tolerance and fit class before installation.

Installation Notes

Installation is performed using a pin punch and hammer or an arbor press to drive the pin into a properly toleranced hole. Power down or de-energize any equipment before servicing fastener assemblies. Ensure the receiving hole diameter and depth are within the required tolerance to achieve correct interference fit. Do not reuse a slotted spring pin that has been fully compressed or visibly deformed.
