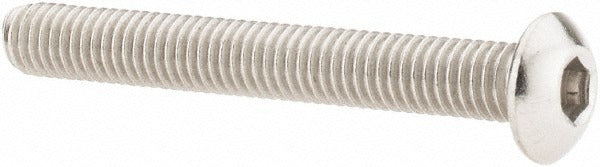

Value Collection R63062926 Button Socket Cap Screw 10-32

Product Description

The VALUE COLLECTION R63062926 is a button socket cap screw designed for applications requiring a low-profile head and a secure hex socket drive. Sized at 10-32 UNF with a 1.5-inch length under head, it is machined from 18-8 stainless steel and left with a bright, uncoated finish. The hex socket drive accepts a 1/8-inch hex key for installation in confined spaces where a standard hex bolt head would not fit. This fastener conforms to ANSI/ASME B18.3 and is appropriate for mechanical assemblies, HVAC equipment panels, electrical enclosures, and general trade fabrication work.

This screw is suited for residential and light commercial applications where corrosion resistance and a low-profile head are required. The 18-8 stainless steel construction resists rust and oxidation in moderate-moisture environments, making it a practical choice for indoor mechanical rooms, equipment enclosures, and panel assemblies. Installers working on HVAC units, electrical panels, and plumbing fixtures commonly use this style of fastener when clearance above the fastener head is limited.

Key Features

• Button head profile reduces protrusion above the mating surface
• 1/8-inch hex socket drive allows installation in tight clearance areas
• 18-8 stainless steel construction provides corrosion resistance in moisture-present environments
• Bright, uncoated finish maintains dimensional consistency for close-tolerance fits
• Right-hand thread direction, Class 3A thread fit for secure engagement
• Conforms to ANSI/ASME B18.3 fastener standard

Compatibility

Designed as an OEM-style replacement or general-use fastener compatible with 10-32 UNF threaded applications requiring a button head socket cap screw per ANSI/ASME B18.3.

Installation Notes

Installation requires a 1/8-inch hex key or Allen driver. Confirm the mating thread is 10-32 UNF and the tapped hole depth accommodates the 1.5-inch length under head before driving the fastener. Avoid over-torquing stainless steel fasteners, as galling can occur without appropriate anti-seize compound on the threads. Always de-energize or shut off any system before accessing panels or enclosures where this fastener is used.
