Value Collection R63034483 10-32 Machine Screw Oval Phillips

Product Description

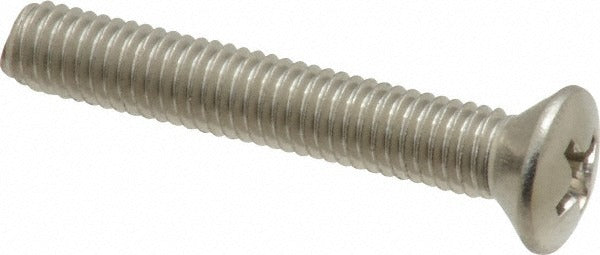

The VALUE COLLECTION R63034483 is a 10-32 x 1.25-inch machine screw with an oval head and Phillips drive, manufactured from 18-8 stainless steel with a bright, uncoated finish. The 10-32 thread designation indicates a Number 10 diameter with 32 threads per inch, conforming to Unified National Fine (UNF) standards. The oval head profile sits slightly above the surface with a countersunk underside, providing a low-profile finished appearance in countersunk applications. The 18-8 stainless steel construction offers solid corrosion resistance for both indoor and outdoor use. Overall length is measured at 1.25 inches, with length under head also measuring 1.25 inches, indicating that the head height is not included in the overall measurement.

This screw is suited for light-duty mechanical assemblies, electrical enclosures, HVAC panels, plumbing access covers, and general equipment fastening where a flush or semi-flush finished appearance is required. The Phillips drive is compatible with standard Phillips screwdrivers and bits in No. 2 size, which is typical for the Number 10 screw diameter. The UNF thread form is common in precision and thin-material applications where finer thread engagement is preferred over coarse-thread fasteners. These screws are packaged individually per unit with a minimum order quantity of 100 pieces, making them appropriate for contractors and technicians stocking hardware for service work or panel assembly.

Key Features

• 10-32 UNF thread for precise engagement in fine-threaded applications
• Oval head with Phillips drive provides a low-profile countersunk appearance
• 18-8 stainless steel construction resists corrosion in wet or outdoor environments
• Bright, uncoated finish suitable where added coating is not required
• Overall length and length under head both measure 1.25 inches
• No washer included; designed for use without an integrated washer flange

Compatibility

Designed as a standard 10-32 UNF machine screw for use in any application requiring a Number 10 fine-thread fastener with an oval head and Phillips drive in a 1.25-inch length.

Installation Notes

Installation requires a pre-tapped 10-32 threaded hole or a matching 10-32 nut. Use a No. 2 Phillips screwdriver or bit to drive the fastener; avoid over-torquing stainless steel fasteners as galling can occur, particularly in stainless-to-stainless thread contact. For countersunk applications, ensure the receiving material is chamfered to match the oval head angle for proper seating. Fastener selection and installation should comply with applicable mechanical and electrical codes for the trade and application involved.
