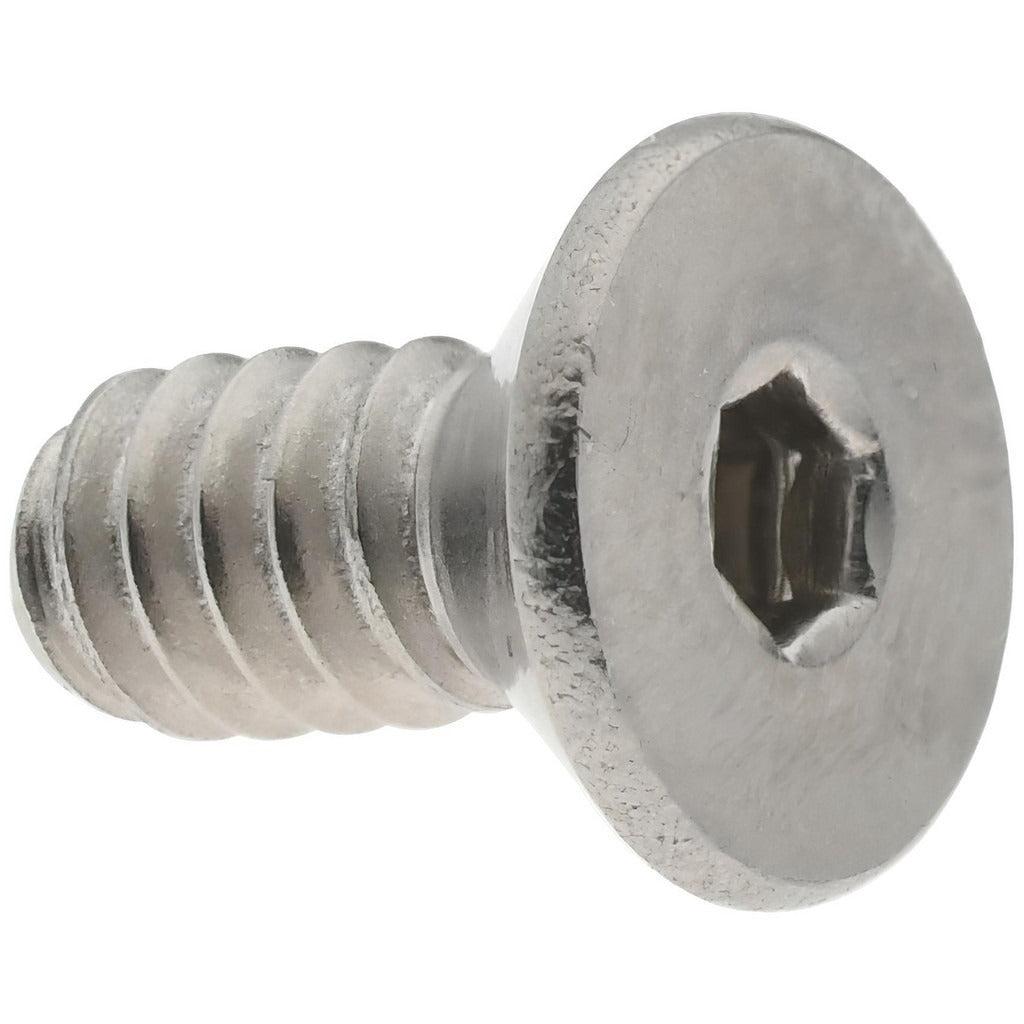

Value Collection R63008960 Flat Socket Cap Screw 6-32

Product Description

The VALUE COLLECTION R63008960 is a flat socket cap screw designed for fastening applications that require a flush or countersunk head profile. It features an 82-degree flat head geometry and a hex socket drive, accepting a 5/64-inch hex key. Machined from 18-8 stainless steel, this fastener resists corrosion in wet, humid, or mildly corrosive environments. The thread specification is 6-32 UNC with an overall length of 5/16 inches. It is suited for mechanical assemblies, equipment enclosures, and panel work where a low-profile fastener is required and the mating material can be countersunk to receive the head.

This screw is used in light mechanical and structural fastening applications across HVAC equipment, electrical enclosures, plumbing fixtures, and general trade fabrication. The 6-32 UNC thread size is common in small-frame assemblies and thin-gauge sheet metal work. The flat head seats flush when the receiving material is countersunk to the correct 82-degree angle, eliminating protrusion that could interfere with adjacent components or covers.

Key Features

• 82-degree flat head geometry for flush countersunk installation
• Hex socket drive accepts a 5/64-inch hex key for precise torque application
• 18-8 stainless steel construction for corrosion resistance in wet and humid environments
• 6-32 UNC thread standard, a widely used size in small mechanical assemblies
• 5/16-inch overall length suits thin-material fastening applications

Compatibility

Designed as a standard inch-series UNC flat socket cap screw compatible with any tapped or through-hole application specifying a 6-32 thread and an 82-degree countersunk flat head.

Installation Notes

Installation is performed with a 5/64-inch hex key or hex socket driver. The receiving material must be countersunk to an 82-degree included angle to allow the head to seat flush. Power down or de-energize any equipment before accessing fastened panels or enclosures. Follow applicable NEC or equipment manufacturer torque and assembly guidelines for the specific assembly being serviced.
