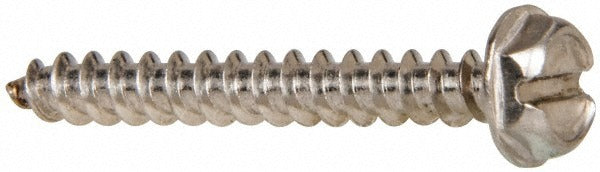

Value Collection R58005320 No 10 Sheet Metal Screw

Product Description

The VALUE COLLECTION R58005320 is a No. 10 sheet metal screw designed for fastening thin metal panels, ductwork, enclosures, and similar light-gauge sheet metal assemblies. The hex washer head provides a built-in bearing surface that distributes clamping load and resists pull-through. The slotted drive accepts a standard flat-blade screwdriver or bit. At 0.75 inches in length measured under the head, this screw is suited for shallow-material applications where a shorter fastener is required. Constructed from Grade 316 stainless steel, the fastener offers strong corrosion resistance in moisture-prone and chemical-exposure environments.

This screw is commonly used in HVAC duct assembly, electrical enclosure fabrication, plumbing equipment panels, and marine or coastal installations where corrosion resistance is a priority. Grade 316 stainless steel is the standard choice when Grade 304 is insufficient due to chloride or salt-air exposure. The hex washer head style allows installation with a nut driver or socket, making it a preferred fastener for field technicians working in tight quarters on sheet metal systems.

Key Features

• Grade 316 stainless steel construction for superior corrosion resistance in harsh or coastal environments
• Hex washer head with integrated bearing surface reduces pull-through and speeds installation with a nut driver
• Slotted drive accepts standard flat-blade bits or screwdrivers
• No. 10 thread size compatible with standard sheet metal fastener applications
• 0.75 inch length under head suits thin-gauge material stack-ups
• Uncoated finish maintains dimensional consistency and avoids coating interference in tight-tolerance holes

Compatibility

Designed as an OEM-style replacement or general-use fastener for No. 10 sheet metal screw applications in HVAC, electrical, and plumbing equipment assemblies.

Installation Notes

Sheet metal screws of this type are installed by HVAC technicians, electricians, and plumbers during equipment assembly or field fabrication. Power down or de-energize any electrical enclosure before fastening. Use a properly sized nut driver or hex bit to avoid rounding the head. Do not over-drive into thin-gauge material, as sheet metal threads strip quickly under excess torque.
