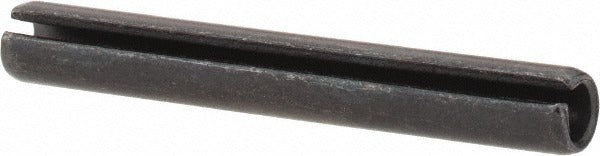

Value Collection R57900663 Slotted Spring Pin 32mm

Product Description

The VALUE COLLECTION R57900663 is a slotted spring pin manufactured from 1070-1080 grade carbon steel with a plain finish. Slotted spring pins are cylindrical fasteners with a longitudinal slot that allows the pin to compress during insertion and apply outward spring force against the hole wall, creating a secure, self-retaining fit. This pin measures 32 millimeters in overall length and 4 millimeters in diameter. It is a metric-dimensioned component intended for general mechanical assembly applications. Machinists, maintenance technicians, and precision assembly professionals use slotted spring pins to secure shafts, gears, levers, and linkages in light to medium-duty assemblies.

This pin is suited for use in metric-dimensioned assemblies across industrial machinery, agricultural equipment, automotive components, and general fabrication applications. The 1070-1080 steel construction provides adequate hardness and spring temper for standard retention duties. The plain finish indicates no additional protective coating, which is appropriate for internal or protected installation environments where corrosion exposure is minimal. This product does not meet military specifications and is intended for commercial and industrial use.

Key Features

• Slotted design provides radial spring force for a self-retaining, vibration-resistant fit
• 1070-1080 high-carbon steel construction delivers hardness and spring temper appropriate for mechanical retention
• Metric dimensions: 32 millimeters length, 4 millimeters diameter
• Plain finish for use in dry or protected internal assembly environments
• Does not meet military specifications — rated for commercial and industrial applications

Compatibility

Designed as a standard metric slotted spring pin for general-purpose mechanical assemblies requiring a 4 millimeter diameter retention pin in a 32 millimeter length.

Installation Notes

Slotted spring pins are installed by mechanical technicians or machinists using a pin punch and hammer or a hydraulic press, depending on fit tolerance and assembly requirements. The receiving hole should be drilled to the appropriate tolerance for a standard spring pin fit per the relevant ISO or ANSI standard. Ensure the assembly is de-energized and secured before inserting or removing pins from live machinery. Do not reuse pins that have been plastically deformed beyond their design compression range.
