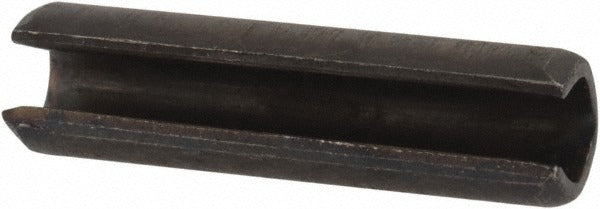

Value Collection R57900609 Slotted Spring Pin 14mm

Product Description

The VALUE COLLECTION R57900609 is a slotted spring pin designed for use in mechanical assemblies requiring a secure, removable fastening solution. The slotted design allows the pin to compress radially during installation, creating a spring-loaded fit that resists loosening under vibration and cyclic loading. Measuring 14 mm in length with a 3.5 mm diameter, this pin is manufactured from 1070-1080 grade steel with a plain finish. It is a standard metric fastener installed by machinists, millwrights, and maintenance technicians in a wide range of industrial and mechanical applications.

This pin is suited for use in precision mechanical assemblies including hinges, linkages, shaft retainers, and positioning fixtures. The metric dimensions and 1070-1080 steel construction make it appropriate for moderate-load applications where a reliable interference fit is needed. It is commonly used in manufacturing equipment, agricultural machinery, and general industrial assembly work. This SKU is sold as a single piece, with a minimum order quantity of 100 units.

Key Features

• Slotted design allows radial compression for a spring-loaded, vibration-resistant fit
• 14 mm overall length in a standard metric form factor
• 3.5 mm diameter for use in appropriately sized bored holes
• 1070-1080 grade steel construction provides adequate hardness and tensile strength for moderate-duty use
• Plain finish with no additional coating or plating

Compatibility

Designed as a standard metric slotted spring pin for use in any mechanical assembly that accepts a 3.5 mm diameter spring pin. Verify bore diameter and required pin length against your assembly specification before ordering.

Installation Notes

Slotted spring pins are installed by machinists and mechanical technicians using a pin punch and hammer or an arbor press. The bore should be clean and free of burrs before installation. Never reuse a spring pin that has been fully driven and removed, as the spring tension may be compromised. Ensure the bore diameter matches the nominal pin diameter per your assembly drawing to achieve proper interference fit.
