Value Collection R57700467 Slotted Spring Pin 18-8 Ss

Product Description

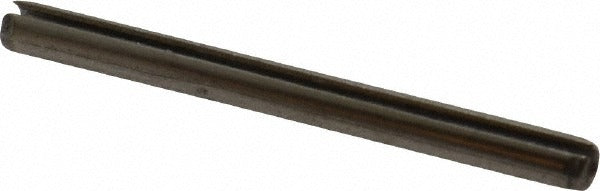

The VALUE COLLECTION R57700467 is a slotted spring pin made from 18-8 stainless steel, designed to provide a secure, resilient fastening solution in mechanical assemblies. The slotted design allows the pin to compress during insertion and exert radial pressure against the hole wall, locking components in place without the need for adhesives or secondary fasteners. At 1.5 inches in length and 0.125 inch in diameter, this pin suits a range of light- to medium-duty alignment and retention applications. Machinists, maintenance technicians, and assembly professionals install these pins where vibration resistance and corrosion resistance are both required.

Slotted spring pins are commonly used in shaft-to-hub connections, linkage assemblies, hinge mechanisms, and fixture work across general manufacturing, maintenance, and repair environments. The 18-8 stainless steel construction makes this pin well suited to applications with exposure to moisture, mild chemicals, or other corrosive conditions. This pin is sold individually, with a minimum order quantity of 100 units, making it appropriate for production line stocking or MRO inventory replenishment.

Key Features

• 18-8 stainless steel construction provides corrosion resistance in wet or chemically exposed environments
• Slotted design compresses on insertion for a secure interference fit in drilled holes
• 1.5 inch overall length suitable for moderate-depth fastening applications
• 0.125 inch diameter for use in standard 1/8 inch drilled or reamed holes
• Sold per piece with MOQ of 100 units, convenient for production stocking

Compatibility

Designed as a standard inch-system slotted spring pin for use in any mechanical assembly requiring a 0.125 inch diameter spring pin hole, consistent with common industrial and OEM fastener specifications.

Installation Notes

Installation is performed using a pin punch and hammer or an arbor press — select a punch diameter slightly smaller than the pin OD to avoid deforming the slot. Ensure the receiving hole is clean and deburred before driving the pin. Always wear eye protection when driving spring pins manually. Removal requires a pin punch driven from the appropriate end; do not attempt to drill out a slotted spring pin as this can damage the mating bore.
