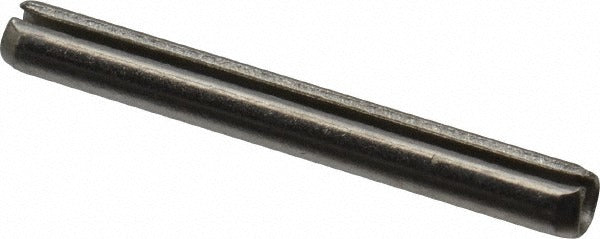

Value Collection R57700423 Slotted Spring Pin 18-8 Ss

Product Description

The VALUE COLLECTION R57700423 is a slotted spring pin manufactured from 18-8 stainless steel. Slotted spring pins, also called roll pins, are hollow cylindrical fasteners with a longitudinal slot that allows the pin to compress during installation and exert a radial force against the hole wall, creating a secure press fit without additional hardware. This pin measures 13/16 inches in overall length with a 3/32 inch diameter. The 18-8 stainless steel construction provides corrosion resistance suitable for both indoor and outdoor applications. Installation is performed by mechanical or hand-tool press fit into a drilled or reamed hole. These pins are commonly installed by millwrights, maintenance technicians, and general assembly personnel.

Slotted spring pins are used across a wide range of mechanical assemblies including hinges, linkages, shafts, and fixtures where a removable or semi-permanent retention solution is required. This pin size, at 13/16 inches long and 3/32 inch diameter, fits light-duty applications where a compact fastener is needed. The stainless steel grade makes it appropriate for environments with moisture exposure or mild chemical contact. This pin does not meet military specifications and is intended for commercial and industrial general-purpose use.

Key Features

• Slotted design allows radial compression for press-fit retention in drilled or reamed holes
• 18-8 stainless steel construction offers corrosion resistance for wet or outdoor environments
• 13/16 inch overall length suits compact mechanical assemblies
• 3/32 inch diameter for light-duty fastening applications
• Inch measurement system for compatibility with standard tooling and hole specifications

Compatibility

Designed as a general-purpose slotted spring pin for commercial and industrial mechanical assemblies requiring a 3/32 inch diameter, 13/16 inch length roll pin in an inch-measurement system.

Installation Notes

Slotted spring pins are installed by licensed maintenance technicians or qualified assembly personnel using a pin punch and hammer or an arbor press. Ensure the receiving hole is drilled or reamed to the correct diameter per standard spring pin tolerances before installation. Align the pin slot at a 90-degree orientation to the primary load direction to maximize shear strength. Follow applicable facility safety procedures and de-energize or lock out any equipment before servicing assemblies containing these pins.
