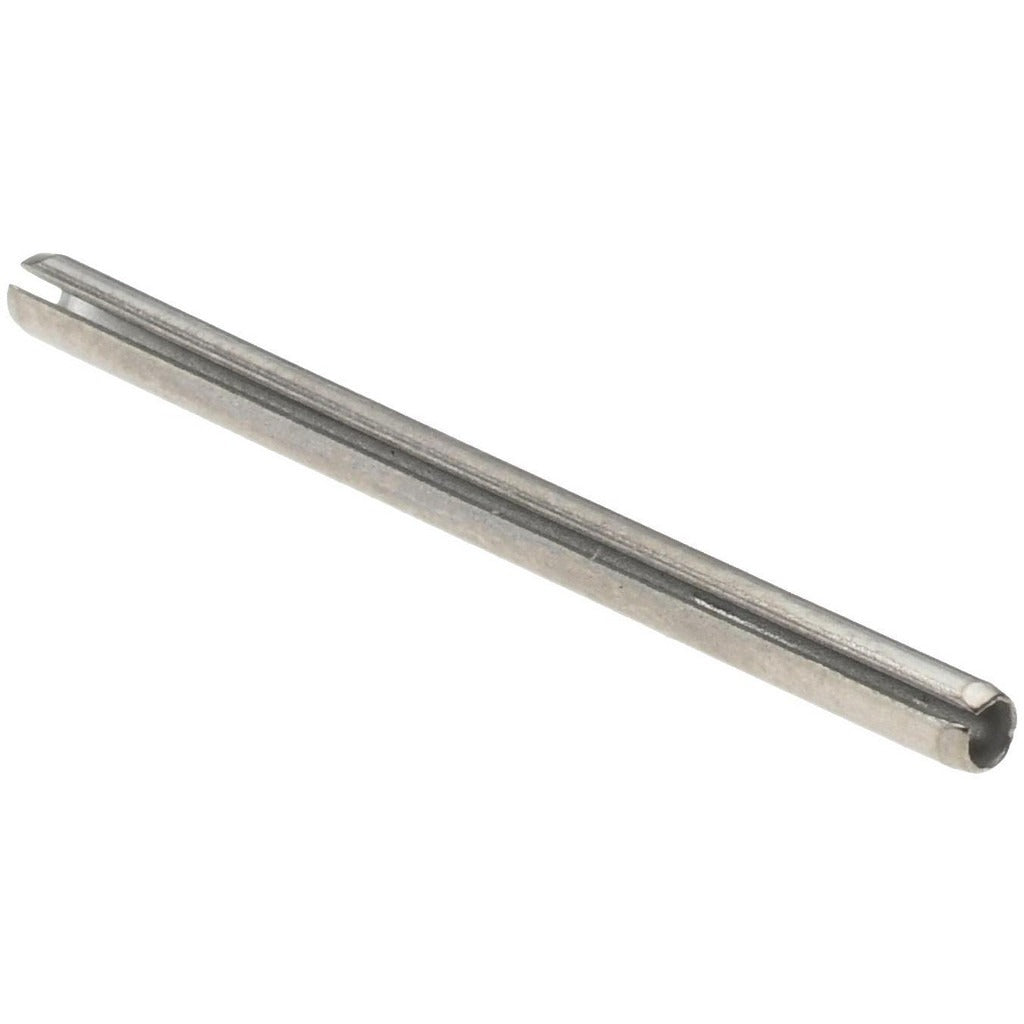

Value Collection R57700375 Slotted Spring Pin 18-8 Ss

Product Description

The VALUE COLLECTION R57700375 is a slotted spring pin manufactured from 18-8 stainless steel. Slotted spring pins, also called roll pins, are hollow cylindrical fasteners with a longitudinal slot that allows the pin to compress during installation and exert a radial spring force against the bore wall. This design provides secure retention without the need for adhesives or secondary locking features. The R57700375 measures 1 inch in overall length with a 1/16 inch diameter. The 18-8 stainless steel construction delivers corrosion resistance suitable for demanding environments. Maintenance technicians, millwrights, and mechanical assemblers commonly install these fasteners in light-duty pin retention applications.

This slotted spring pin is suited for use in assemblies where a self-retaining, removable pin is required. Typical applications include shaft-to-hub connections, hinge pins, linkage assemblies, and equipment panels across industrial, commercial, and light mechanical settings. The inch measurement system and fractional 1/16 inch diameter make it a standard fit for North American equipment builds and repair work. It is sold individually (package quantity of 1) with a minimum order quantity of 100 units per order.

Key Features

• Slotted design allows radial compression for self-retaining fit in drilled bores
• 18-8 stainless steel construction provides corrosion and oxidation resistance
• 1 inch overall length with 1/16 inch diameter for light-duty fastening applications
• Inch measurement system for compatibility with standard North American bore tooling
• Does not meet military specifications — intended for commercial and industrial use

Compatibility

Designed as a standard slotted spring pin replacement or new-build fastener for any application requiring a 1/16 inch diameter, 1 inch long roll pin in an inch-dimensioned bore.

Installation Notes

Slotted spring pins are installed by mechanical technicians or assemblers using a pin punch and hammer or a hydraulic press sized for the pin diameter. The receiving bore should be drilled to the correct nominal diameter per the pin manufacturer's tolerance specifications before installation. Always wear appropriate eye protection when driving pins. To remove, drive the pin out from the chamfered end using a proper-size punch to avoid bore damage.
