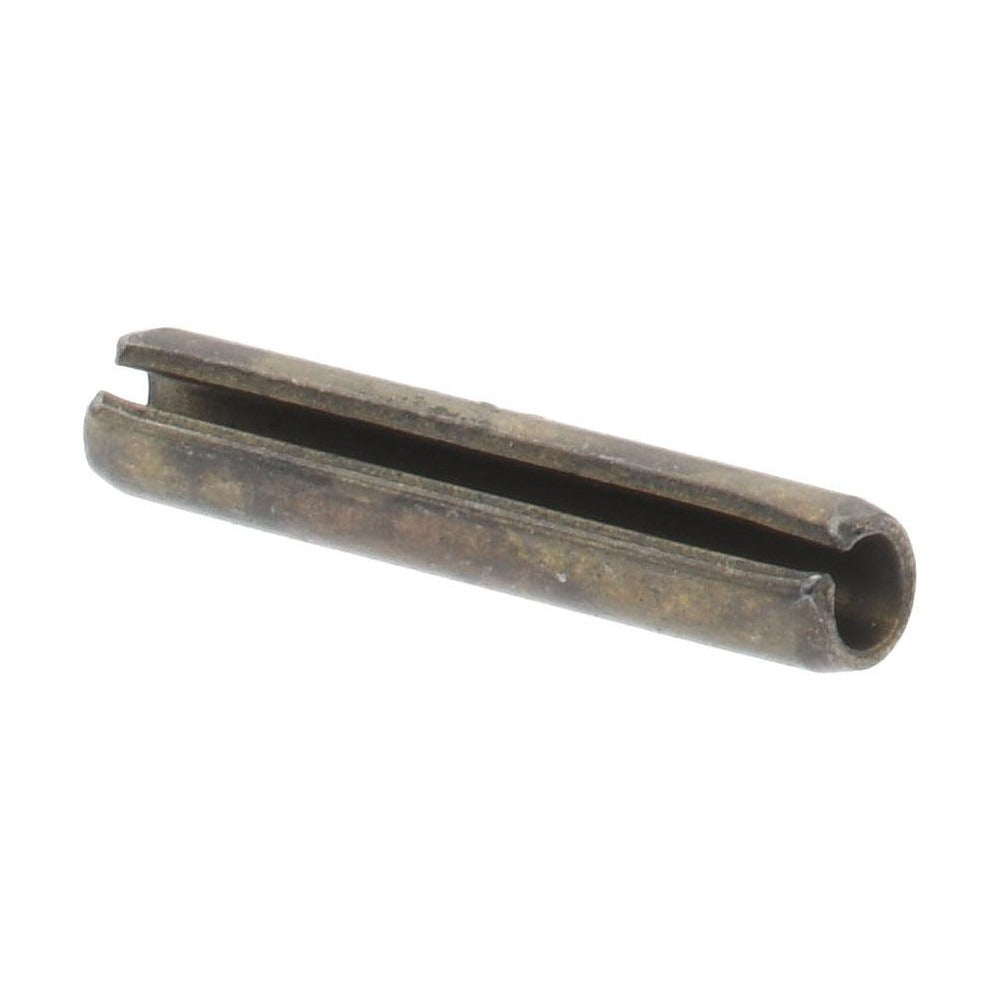

Value Collection R57700103 Slotted Spring Pin 0.0938 in

Product Description

The VALUE COLLECTION R57700103 is a slotted spring pin designed for use in mechanical assemblies where a secure, removable fastening solution is needed in tight tolerances. The pin measures 0.0938 inches (3/32 inch fraction) in diameter and 0.5 inches in overall length. It is manufactured from 1070-1090 alloy steel with a plain finish, providing solid shear strength and reliable retention in drilled holes. This type of pin is commonly installed by machinists, millwrights, and maintenance technicians working on production machinery, fixtures, and mechanical assemblies requiring indexed or pinned connections.

Slotted spring pins are used across a wide range of industrial and mechanical applications including shaft-to-hub connections, gear and pulley retention, hinge pivots, and alignment fixtures. The 0.0938 inch diameter and 0.5 inch length make this pin suited for light-duty to medium-duty assemblies with corresponding hole sizes in metal, plastic, or composite components. This pin does not meet military specifications and is rated for standard commercial applications. It is sold individually with a minimum order quantity of 500 units.

Key Features

• Slotted spring pin design allows radial compression for controlled fit and retention in drilled holes
• 1070-1090 alloy steel construction provides high shear strength for the pin diameter
• Plain finish — no additional coating or plating that would affect dimensional tolerances
• 0.0938 inch (3/32 inch) diameter suits standard hole patterns in light mechanical assemblies
• 0.5 inch overall length appropriate for thin-wall and shallow-bore applications
• Inch measurement system — compatible with standard imperial tooling and gauging

Compatibility

Designed as a standard slotted spring pin for use in commercial mechanical assemblies requiring an imperial-dimensioned pin with a 0.0938 inch nominal diameter and 0.5 inch length. Confirm mating hole diameter and depth before installation.

Installation Notes

Slotted spring pins are typically installed by machinists or maintenance technicians using a pin punch and hammer or an arbor press. Ensure the receiving hole is clean, free of burrs, and sized to the appropriate tolerance for a slotted spring pin fit. De-energize and lock out any machinery before installing or removing pins from rotating or moving components. Do not reuse pins that have been deformed beyond their elastic range.
