Value Collection R52001309 Machine Screw 8-32 X 3/4 in

Product Description

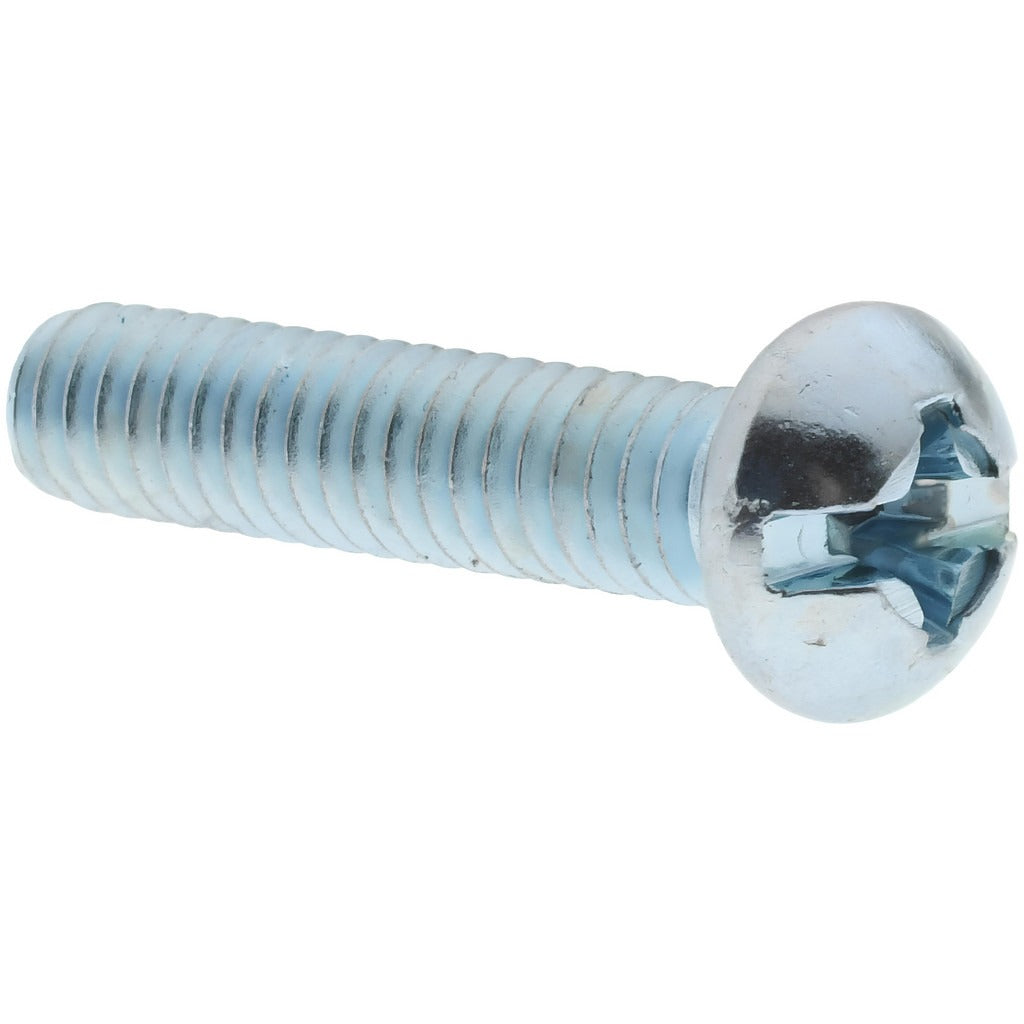

The VALUE COLLECTION R52001309 is an 8-32 x 3/4-inch round head machine screw with a combination slotted and Phillips drive. Constructed from steel with a zinc-plated finish, it meets ASME B18.6.3 and SAE J82 standards for dimensional accuracy and material grade. Length measurement is taken under the head, giving a 3/4-inch grip length. This fastener is suited for general-purpose mechanical assemblies and light structural applications where a corrosion-resistant, dual-drive fastener is required. Electricians, HVAC technicians, plumbers, and general maintenance trades commonly use this screw size for panel covers, junction boxes, and equipment enclosures.

The 8-32 thread size is a standard unified coarse thread widely used in electrical enclosures, control panels, HVAC equipment housings, and general sheet-metal assemblies. The round head profile provides a low-profile bearing surface suitable for through-hole fastening without a washer. The zinc plating offers moderate corrosion resistance for indoor and sheltered outdoor applications. This screw is sold individually but must be ordered in multiples of 100 per the minimum order requirement.

Key Features

• 8-32 unified coarse thread for broad compatibility with standard tapped holes
• Combination slotted and Phillips drive accepts both flat-blade and Phillips drivers
• Round head profile suits through-hole fastening without a washer
• Zinc-plated steel finish provides moderate corrosion resistance
• Meets ASME B18.6.3 and SAE J82 dimensional and material standards
• Grade J82 steel construction for consistent mechanical performance

Compatibility

Designed as a standard 8-32 x 3/4-inch round head machine screw for use in any application requiring an ASME B18.6.3-compliant fastener with a unified coarse thread.

Installation Notes

Install using a No. 2 Phillips driver or a standard flat-blade screwdriver sized to the slot. Ensure the receiving hole is tapped to 8-32 specifications before driving the screw. Do not overtighten in thin sheet metal or plastic panels, as the round head has no built-in bearing washer. Follow all applicable codes and equipment manufacturer torque guidance for the assembly being serviced.
