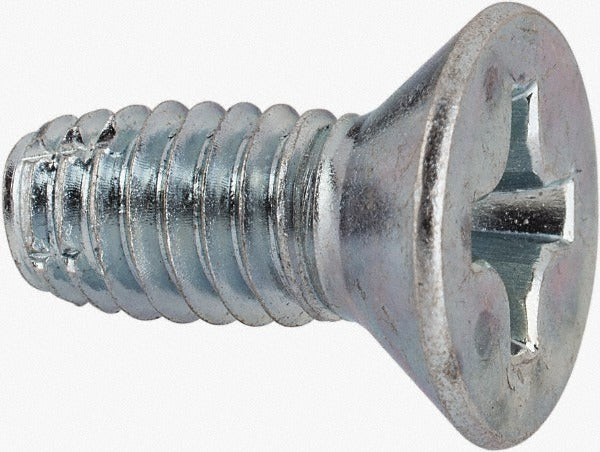

Value Collection R52001115 Thread Cutting Screw 5/16-18

Product Description

The VALUE COLLECTION R52001115 is a 5/16-18 UNC thread cutting screw designed for fastening into metals and other hard materials where a mating thread does not already exist. This Type F point screw cuts its own thread on installation, eliminating the need for a pre-tapped hole in many applications. It features a flat head profile driven by a Number 4 Phillips driver and is manufactured from AISI 1016-1024 steel with a zinc-plated finish for basic corrosion resistance. Overall length is 0.75 inches. This screw is typically installed by mechanical contractors, sheet metal workers, and maintenance technicians working on light structural or equipment assembly tasks.

This screw is suited for use in light-gauge metal, plastics, and composite panels in both residential and commercial service environments. The 5/16-18 UNC thread form is a coarse unified national thread, making it a common choice for general mechanical assembly. The flat head seats flush with or below the surface of the work material, which is useful where a low-profile fastener is required. Sold individually per package with a minimum order quantity of 100 pieces per order.

Key Features

• Type F point cuts its own mating thread during installation
• Flat head design seats flush for low-profile installations
• Number 4 Phillips drive for standard hand and power tools
• AISI 1016-1024 steel construction meets ASME B18.6.3, ASME B18.6.4, and SAE J933 standards
• Zinc-plated finish provides basic corrosion protection
• 0.75 inch overall length suits light-gauge material thickness ranges

Compatibility

Designed as a standard 5/16-18 UNC thread cutting fastener for use in light-gauge metal panels, enclosures, and mechanical assemblies where self-threading fasteners are specified.

Installation Notes

Installation is performed with a Number 4 Phillips bit using a hand screwdriver or power driver set to appropriate torque to avoid stripping the cut thread. A pilot hole sized to the minor diameter of the thread is typically required in harder metals. Ensure the work material is secured before driving. Follow applicable mechanical and structural codes for fastener selection and spacing in your jurisdiction.
