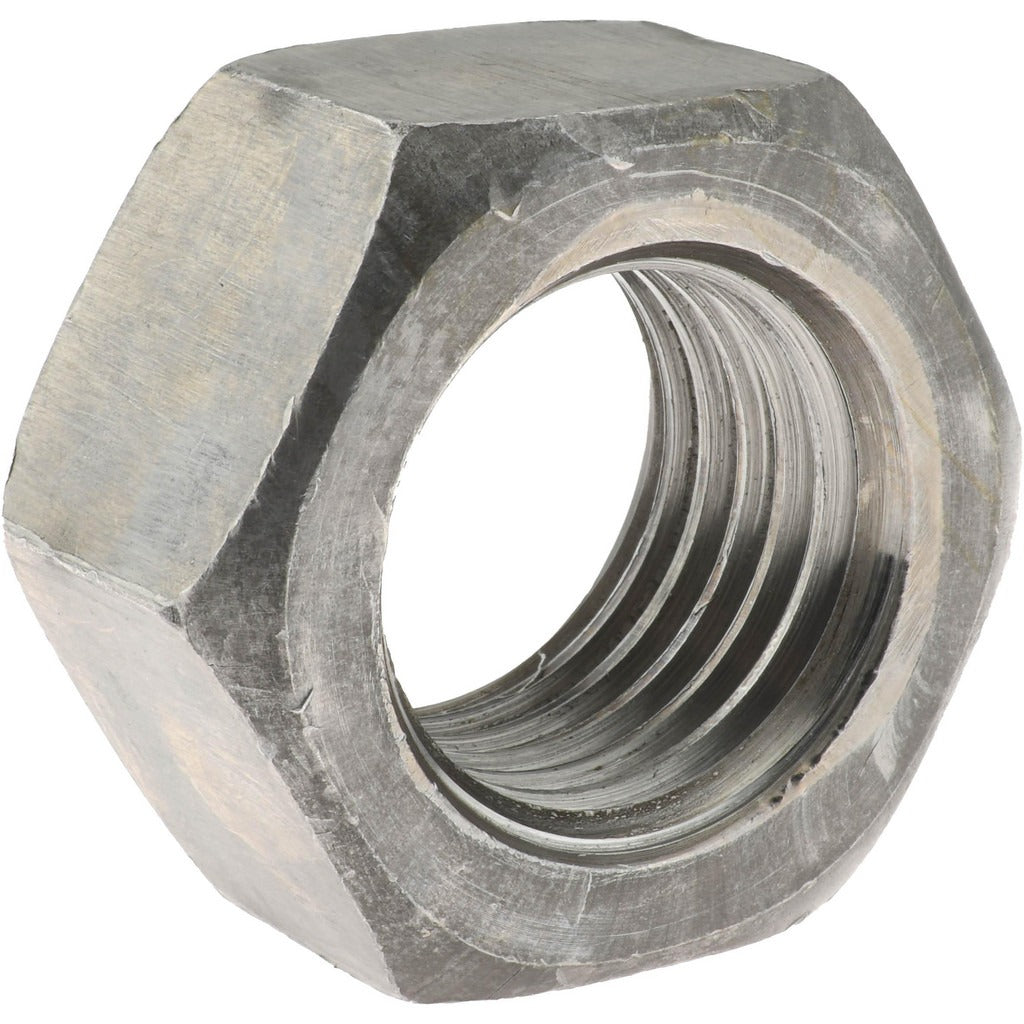

Value Collection R52001105 Hex Nut 1-1/2-6 Grade 2

Product Description

The VALUE COLLECTION R52001105 is a heavy hex nut sized 1-1/2-6, manufactured from SAE J995 Grade 2 steel with a bright, uncoated finish. It features a right-hand UN thread and is dimensioned to ANSI/ASME B18.2.2 standards. With a width across flats of 2.25 inches and a height of 1.2813 inches, this nut is suited for structural and mechanical fastening applications requiring a standard-grade steel fastener. It is installed by plumbers, pipefitters, millwrights, and general maintenance trades using standard hex wrenches or impact tooling sized for a 2.25-inch flat span.

This hex nut is used in industrial, commercial, and residential applications wherever a 1-1/2-6 UNC threaded fastener connection is required. Typical uses include pipe flange assemblies, structural steel connections, equipment mounting, and general mechanical fastening. The Grade 2 classification indicates a mid-range carbon steel construction appropriate for non-critical load-bearing joints that do not require high-strength or military-specification hardware.

Key Features

• Thread size 1-1/2-6 UN with right-hand thread direction
• SAE J995 Grade 2 steel construction with bright, uncoated finish
• Width across flats: 2.25 inches; width across points: 2.598 inches
• Height: 1.2813 inches for full thread engagement depth
• Hardness rated at 68 HRB
• Conforms to ANSI/ASME B18.2.2 fastener standard

Compatibility

Designed for use with any 1-1/2-6 UN right-hand threaded bolt or stud conforming to standard UN thread specifications; not suitable for applications requiring military-specification hardware.

Installation Notes

Installation should be performed by a qualified tradesperson using a wrench or impact tool sized for a 2.25-inch flat span. Ensure mating bolt or stud threads are clean and free of damage before assembly. Do not use this nut in applications specifying high-strength grades such as Grade 5, Grade 8, or ASTM A194. Follow applicable mechanical and structural codes for the specific application.
