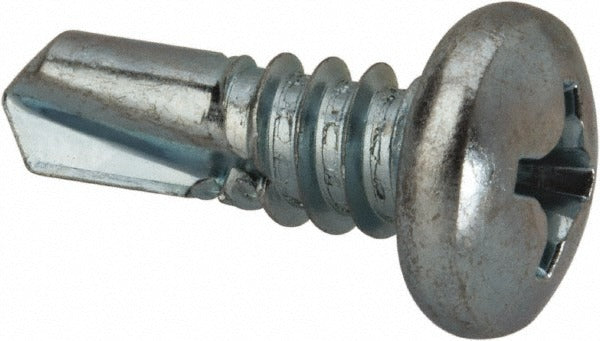

Value Collection R52001043 Self Drilling Screw Pan Head

Product Description

The VALUE COLLECTION R52001043 is a pan head, Phillips drive, self drilling screw designed for fast, reliable fastening in metal and sheet metal applications. With a 1/4 inch diameter and 3/4 inch length under the head, this screw features a 3-point drill point that bores its own pilot hole as it drives. Manufactured from Grade 1016-1024 steel to AISI 1016 and ASME B18.6.3 and ASME B18.6.4 standards, the zinc-plated finish provides corrosion resistance for general-purpose indoor and light outdoor use. Sold in a minimum order quantity of 50 pieces per package.

This self drilling screw is suited for light-gauge sheet metal assembly, HVAC ductwork, metal framing, electrical enclosures, and general sheet metal fabrication. The pan head profile sits low and distributes clamping load over a broad bearing surface. The Phillips recess is compatible with standard #2 Phillips drivers and screw guns, making it practical for both bench assembly and in-field installation by HVAC technicians, electricians, and general tradespeople.

Key Features

• 3-point self drilling tip eliminates the need for a separate pilot hole in light-gauge metal
• Pan head profile provides wide bearing surface and flush-friendly seating
• Phillips drive compatible with standard #2 Phillips bits and screw guns
• Zinc-plated finish adds corrosion resistance for general-purpose applications
• Manufactured to AISI 1016, ASME B18.6.3, ASME B18.6.4, and SAE J78 standards
• Minimum order quantity of 50 pieces supports job-lot and bulk-use purchasing

Compatibility

Designed as a standard self drilling screw for light-gauge sheet metal fastening applications where a 1/4 inch diameter, 3/4 inch length under head, pan head Phillips screw is specified.

Installation Notes

Install with a #2 Phillips bit using a variable-speed screw gun or drill set to a controlled clutch torque appropriate for light-gauge metal to avoid overdriving. Power down or de-energize any electrical enclosure or HVAC equipment before fastening sheet metal panels or covers. Do not use on material gauges thicker than the rated drill point capacity for a 3-point tip. Follow applicable trade standards and local codes when fastening electrical or mechanical enclosures.
