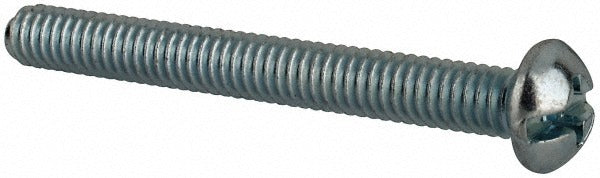

Value Collection R52000910 8-32 X 1.5in Round Head Machine Screw

Product Description

The VALUE COLLECTION R52000910 is a steel machine screw in the 8-32 thread size, measuring 1.5 inches in length under head. It features a round head profile with a combination slotted and Phillips drive, allowing use with either a flat-blade or cross-tip screwdriver. The fastener is zinc-plated for basic corrosion resistance and is manufactured to ASME B18.6.3 and SAE J82 standards, meeting Grade J82 material requirements. This screw is suited for light-duty mechanical assembly work in electrical, HVAC, plumbing, and general trade applications where a reliable, standardized inch-series fastener is needed.

This screw is used across a wide range of trade and industrial applications, including panel assembly, equipment enclosures, junction box covers, and light mechanical fixtures. The 8-32 thread is one of the most common coarse-thread inch-series sizes found in electrical enclosures and HVAC equipment housings. The combination slotted and Phillips drive makes it compatible with the hand tools most technicians already carry. Sold individually as a single package unit, with a minimum order quantity of 100 pieces.

Key Features

• 8-32 thread size, 1.5 inches length under head — a widely used inch-series machine screw size
• Round head profile for low-profile clamping over standard through-holes
• Combination slotted and Phillips drive accepts both flat-blade and cross-tip screwdrivers
• Steel construction with zinc-plating for basic corrosion protection
• Meets ASME B18.6.3 and SAE J82 dimensional and material standards
• No washer — length measurement is taken under head per standard fastener convention

Compatibility

Designed as a standard inch-series machine screw for general-purpose mechanical assembly applications requiring an 8-32 thread and 1.5-inch length under head.

Installation Notes

Installation is typically performed by hand using a flat-blade or Phillips screwdriver. Always verify the mating thread is tapped or pre-threaded to 8-32 before driving to avoid cross-threading or stripping. When used in electrical enclosures, follow applicable NEC guidelines for fastener and panel requirements. Do not overtighten into thin sheet metal or plastic standoffs, as the steel fastener can strip softer mating materials.
