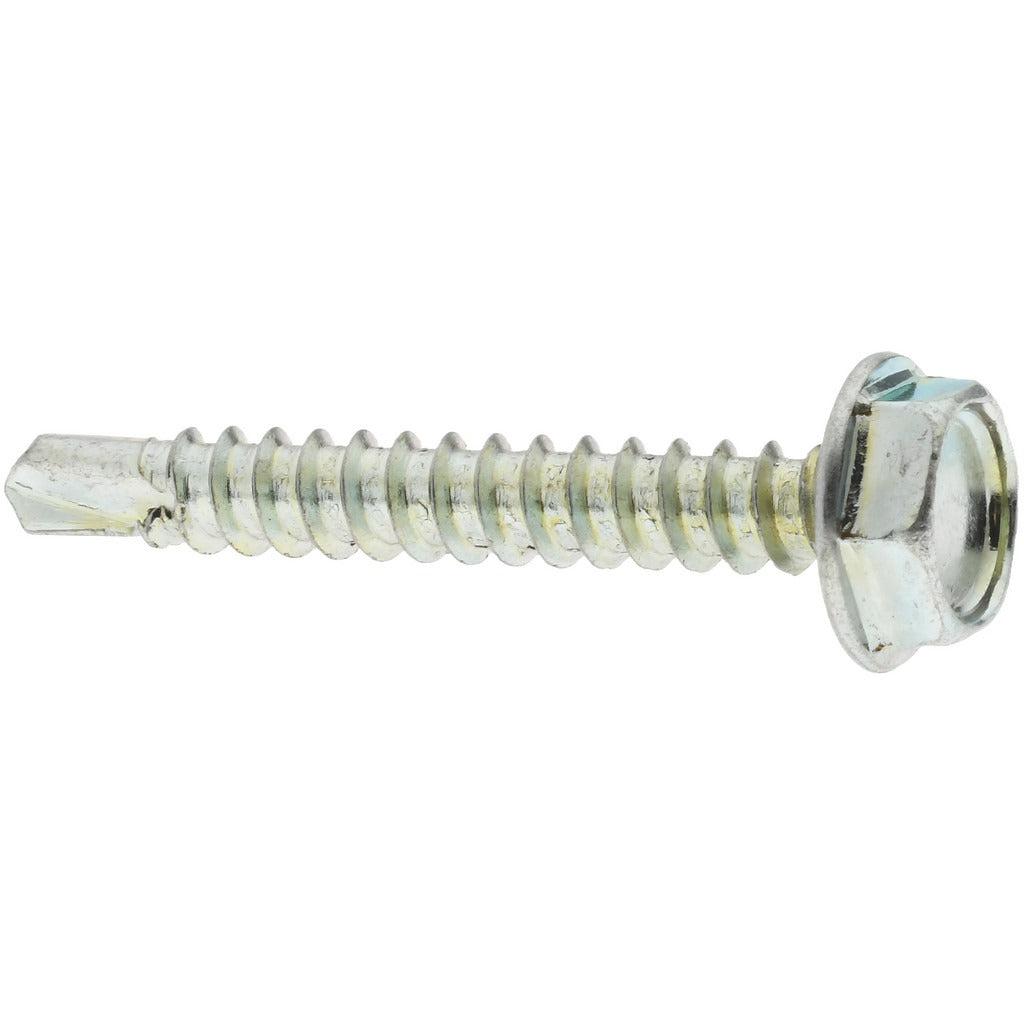

Value Collection R52000863 No. 6 Self Drilling Screw 100pk

Product Description

The VALUE COLLECTION R52000863 is a No. 6 self-drilling screw designed for fast, reliable fastening without the need for a pilot hole. It features a hex washer head and hex drive for positive torque transfer and a wide bearing surface. The 2-point drill tip bores through material and threads in a single operation. Made from grade 1016/1024 steel with a zinc-plated finish, this screw delivers corrosion resistance suited for light-duty interior and exterior applications. Sold in a minimum order quantity of 100 pieces per order, with one screw per package unit as counted in bulk supply.

This fastener is used across a wide range of trade and light industrial applications, including HVAC ductwork attachment, sheet metal fabrication, light steel framing, electrical enclosure assembly, and general construction. The hex washer head seats flush against sheet metal and thin-gauge steel without requiring a separate washer. The hex drive accepts standard 1/4-inch hex-drive bits common to impact drivers and drill-drivers used by HVAC technicians, electricians, and sheet metal workers.

Key Features

• No. 6 screw size with 2-point self-drilling tip eliminates pre-drilling in thin-gauge materials
• Hex washer head provides a wide clamping surface and positive seating against sheet metal
• Hex drive accepts standard 1/4-inch power driver bits for fast installation
• Grade 1016/1024 steel construction for reliable shear and tensile strength in light-duty fastening
• Zinc-plated finish provides baseline corrosion resistance for interior and sheltered exterior use
• Meets AISI 1016, ASME B18.6.3, and SAE J78 standards

Compatibility

Designed as a standard inch-system self-drilling fastener suitable for thin-gauge sheet metal, light steel framing, and similar substrates where a No. 6 diameter and 1-inch length under head are appropriate for the application.

Installation Notes

Install with a 1/4-inch hex-drive bit in a drill-driver or impact driver set to an appropriate clutch setting to avoid overdriving. Power down or de-energize any equipment being fastened before installation. Self-drilling screws are designed for single-pass installation and should not be reused in the same hole once removed. Follow applicable codes such as SMACNA duct construction standards or local building codes for fastener spacing and application-specific requirements.
