Value Collection R52000856 Machine Screw 6-32 X 3/4 in

Product Description

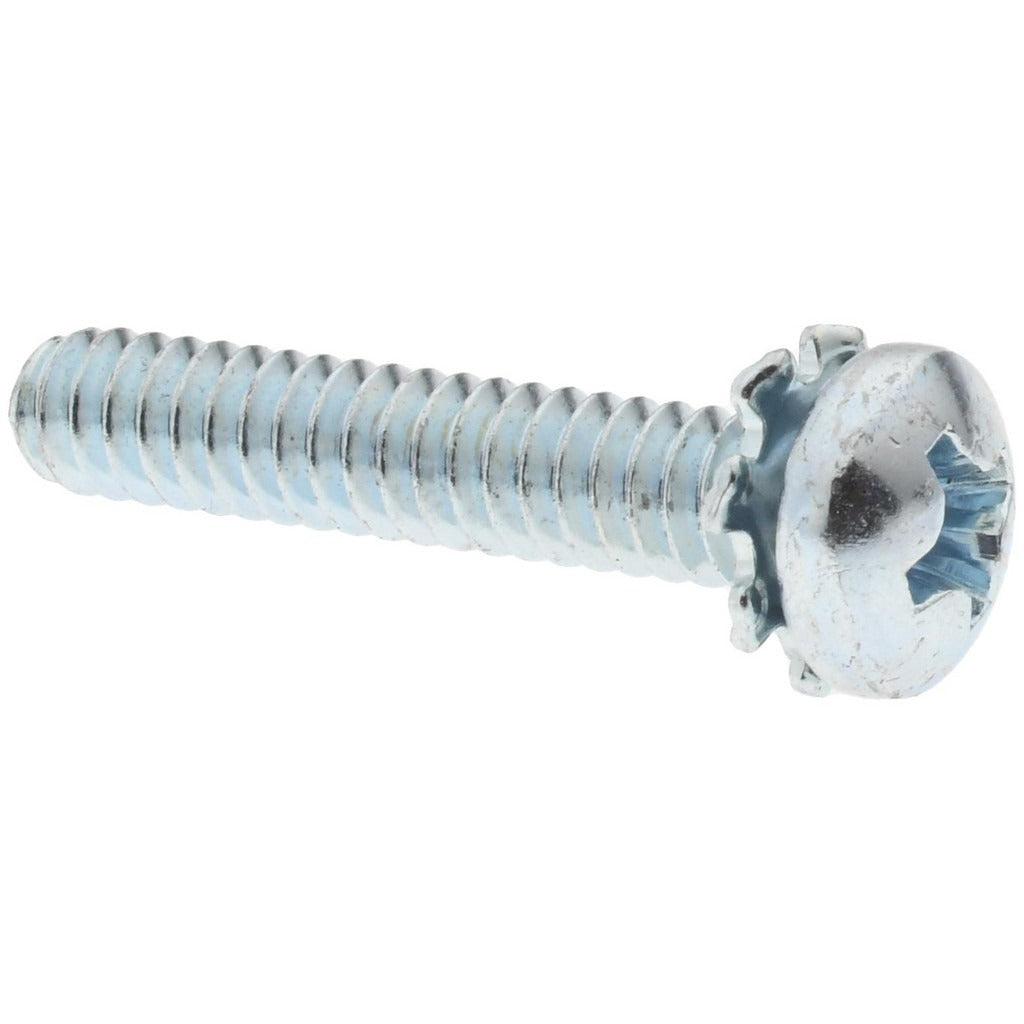

The VALUE COLLECTION R52000856 is a 6-32 pan head Phillips machine screw manufactured from steel with a zinc-plated finish. It measures 3/4 inch in length under the head and conforms to ASME B18.13a and SAE J82 standards. The zinc plating provides basic corrosion resistance for indoor and light-duty service environments. An external tooth washer style is integrated into the design, providing positive locking contact against the mating surface. This screw is a standard fastener used by electricians, HVAC technicians, panel assemblers, and general trade professionals wherever a 6-32 threaded connection is required.

This screw is suitable for light-gauge metal, electrical enclosures, control panels, equipment housings, and general mechanical assemblies that call for a 6-32 thread pattern. The pan head profile sits low and wide, distributing clamp load across the surface without snagging adjacent components. The Phillips drive is compatible with standard #2 Phillips bits and screwdrivers common on every service truck. Sold in multiples of 100 per order with a package quantity of 1.

Key Features

• Thread size 6-32 inch series for broad compatibility with standard 6-32 tapped holes
• 3/4 inch length measured under the head per ASME B18.13a
• Pan head profile for low-profile, high-contact seating on flat surfaces
• Phillips drive accepts standard No. 2 Phillips bits
• Zinc-plated steel finish for basic corrosion resistance in dry to lightly humid environments
• External tooth washer style provides integral locking function without a separate washer
• Meets ASME B18.13a and SAE J82 material and dimensional standards

Compatibility

Designed as a standard 6-32 machine screw for use in any application requiring an ASME B18.13a or SAE J82 compliant pan head Phillips fastener in a 6-32 tapped hole.

Installation Notes

Install using a No. 2 Phillips screwdriver or bit driver. Ensure the mating hole is properly tapped to 6-32 before driving the screw to avoid cross-threading. Power down any electrical equipment before fastening hardware inside panels or enclosures. Do not exceed snug-tight torque on light-gauge sheet metal to prevent thread stripping.
