Value Collection PS-MH-HPC1-172 Hydraulic Pump 10000 Psi

Product Description

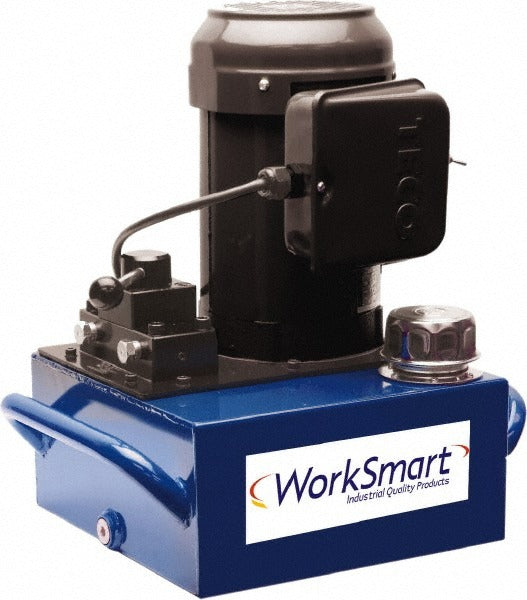

The VALUE COLLECTION PS-MH-HPC1-172 is an electric hydraulic pump designed for single-acting cylinder applications requiring precise directional control. Fitted with a 3-way, 3-position valve, this unit supports Advance, Hold, and Retract operating functions in a single integrated package. It delivers a maximum pressure rating of 10,000 psi and is powered by a 1 horsepower electric motor. The reservoir holds 2 gallons of usable oil, equivalent to 554.4 cubic inches of capacity. This pump is suited for hydraulic technicians, millwrights, and industrial service professionals who need a self-contained power unit on the job site or in a shop setting.

This pump is intended for use with single-acting hydraulic cylinders in industrial, construction, and maintenance applications. The 3-way, 3-position valve configuration makes it appropriate for operations that require controlled extension and retraction cycles with a hold position between movements. Its compact footprint and integrated reservoir make it a practical choice for both stationary shop use and portable field service work where a standalone hydraulic power unit is needed.

Key Features

• 3-way, 3-position valve supports Advance, Hold, and Retract cylinder functions
• 10,000 psi maximum pressure rating for high-force single-acting applications
• 2-gallon usable oil capacity with 554.4 cubic inch reservoir volume
• 1 horsepower electric motor for consistent pump output
• Compatible exclusively with single-acting hydraulic cylinders
• Self-contained unit with integrated reservoir and valve assembly

Compatibility

Designed for use with single-acting hydraulic cylinders requiring a 3-way, 3-position directional control valve and a power unit rated to 10,000 psi.

Installation Notes

Installation and commissioning should be performed by a qualified hydraulic technician or millwright familiar with high-pressure fluid power systems. De-energize the pump and relieve all system pressure before making or breaking any hydraulic connections. Ensure hydraulic fluid is filled to the appropriate level in the reservoir prior to initial startup and verify all fittings are rated for 10,000 psi service. Follow applicable OSHA and local safety codes when working with high-pressure hydraulic equipment.
