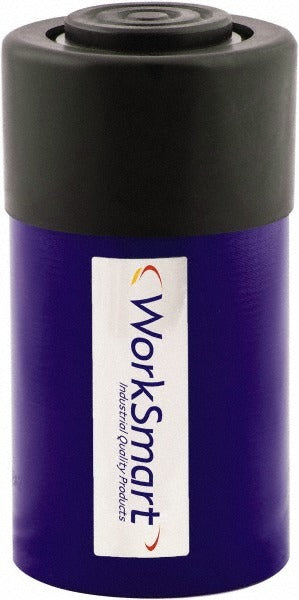

Value Collection PS-MH-HPC1-120 Hydraulic Cylinder

Product Description

The VALUE COLLECTION PS-MH-HPC1-120 is a single-acting portable hydraulic cylinder designed for high-force pushing and lifting applications in industrial, construction, and maintenance environments. With an oil capacity of 10.35 cubic inches and a rod diameter of 2.24 inches, this cylinder delivers controlled linear force in a compact, field-ready package. The plunger features an internal thread size of 1-1/2-16 and an internal thread length of 1.19 inches, allowing for threaded attachment of extensions or load-bearing saddles. At 14.5 pounds, it is portable enough for field use while still offering the structural integrity needed for heavy-duty service tasks.

This cylinder is suited for mechanical and maintenance technicians performing pressing, pushing, bending, or lifting operations in shop and field settings. Its single-acting design means hydraulic pressure drives the plunger in one direction, with retraction handled by the load or a return spring, making it straightforward to operate with a compatible hand or air-driven hydraulic pump. The collar thread of 3-5/16-12 accommodates standard coupling configurations. Typical applications include equipment repair, structural alignment, and general industrial maintenance work.

Key Features

• Single-acting design for straightforward push-force operation with a compatible hydraulic pump
• 10.35 cubic inch oil capacity for consistent stroke volume
• 2.24-inch rod diameter for high-load handling
• Plunger internal thread size of 1-1/2-16 with 1.19-inch thread length for secure accessory attachment
• Collar thread of 3-5/16-12 for standard coupling compatibility
• Portable at 14.5 pounds, suitable for both shop and field deployment

Compatibility

Designed as an OEM-style replacement or direct-use portable hydraulic cylinder compatible with single-acting hydraulic pump systems that accept standard collar and plunger thread configurations.

Installation Notes

Installation and operation should be performed by qualified hydraulic equipment technicians familiar with high-pressure hydraulic systems. Always depressurize and bleed the hydraulic circuit completely before connecting or disconnecting the cylinder. Ensure all threaded connections at the plunger and collar are fully engaged and free of contamination before applying pressure. Follow applicable ANSI and ASME safety standards for hydraulic tooling use.
